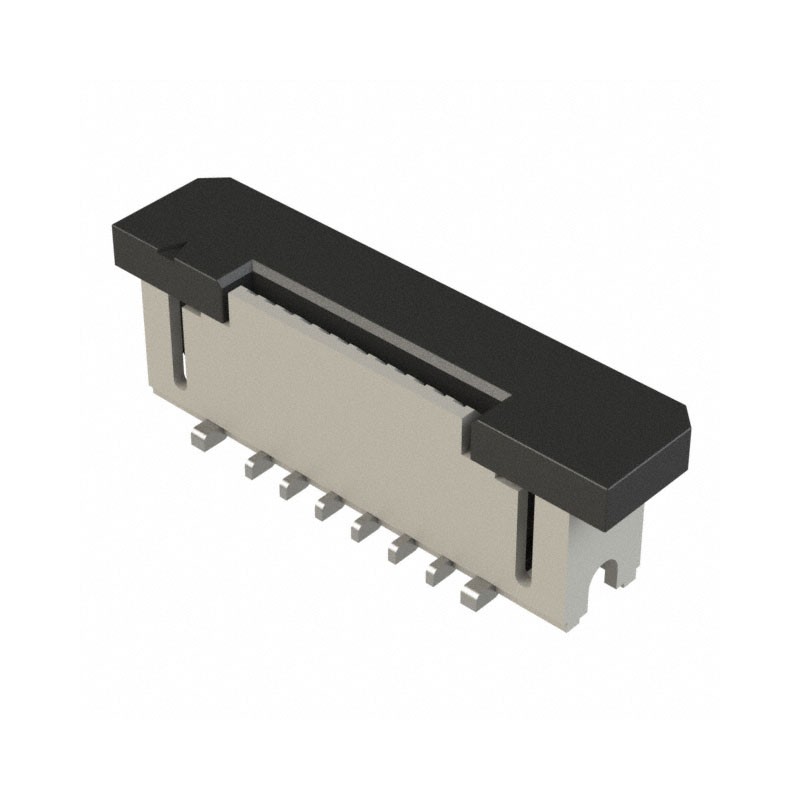

    1 pcs : FFC2A32-12-T - CONN FFC VERT 12POS 0.5MM SMD
    • 1 pcs : FFC2A32-12-T - CONN FFC VERT 12POS 0.5MM SMD

    1 pcs : FFC2A32-12-T - CONN FFC VERT 12POS 0.5MM SMD

    1Allparts2073FFC2A3212TTRND
    GCT
    £8.72
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    12 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020' (0.50mm) Surface Mount
    Product Details
    GCT
    1Allparts2073FFC2A3212TTRND
    FFC2A32-12-T
    3 Items

    Data sheet

    Manufacturer
    GCT
    Operating temperature
    -25°C ~ 85°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    12
    Series
    FFC2A32
    Voltage Rating
    30V
    Mounting Type
    Surface Mount
    Housing Material
    Liquid Crystal Polymer (LCP)
    Termination
    Solder
    Features
    Solder Retention, Zero Insertion Force (ZIF)
    Pitch
    0.020' (0.50mm)
    Actuator Material
    Liquid Crystal Polymer (LCP)
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Base Product Number
    FFC2A32
    Current Rating (Amps)
    0.2A
    Contact Finish
    Tin
    Contact Finish Thickness
    -
    Flat Flex Type
    FFC, FPC
    Connector/Contact Type
    Contacts, Vertical - 1 Sided
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.167' (4.25mm)
    Locking Feature
    Slide Lock
    Cable End Type
    Tapered
    Material Flammability Rating
    UL94 V-0
    Housing Color
    Natural
    Actuator Color
    Black
    Mating Cycles
    20
