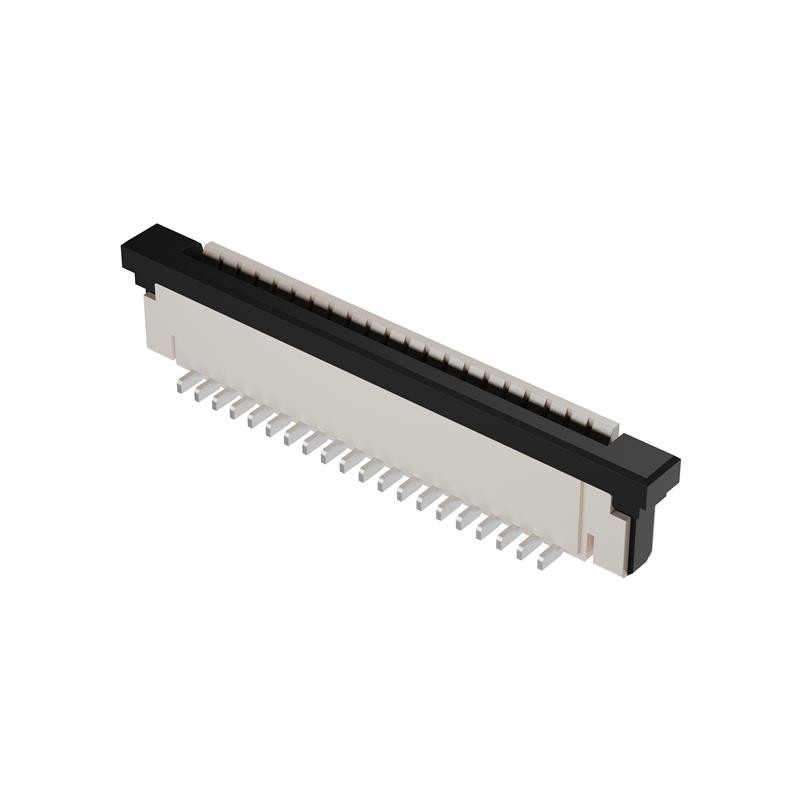

    1 pcs : FFC3A20-08-G - CONN FFC FPC VERT 8POS 1MM SMD
    • 1 pcs : FFC3A20-08-G - CONN FFC FPC VERT 8POS 1MM SMD

    1 pcs : FFC3A20-08-G - CONN FFC FPC VERT 8POS 1MM SMD

    1Allparts2073FFC3A2008GTRND
    GCT
    £8.72
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    8 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039' (1.00mm) Surface Mount
    Product Details
    GCT
    1Allparts2073FFC3A2008GTRND
    FFC3A20-08-G
    3 Items

    Data sheet

    Manufacturer
    GCT
    Operating temperature
    -40°C ~ 85°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    8
    Series
    FFC3A20
    Voltage Rating
    125V
    Mounting Type
    Surface Mount
    Housing Material
    Polyamide (PA6T), Nylon 6T
    Termination
    Solder
    Features
    Pick and Place Cap, Zero Insertion Force (ZIF)
    Pitch
    0.039' (1.00mm)
    Actuator Material
    Polyphenylene Sulfide (PPS)
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Current Rating (Amps)
    1A
    Contact Finish
    Gold
    Contact Finish Thickness
    Flash
    Flat Flex Type
    FFC, FPC
    Connector/Contact Type
    Contacts, Vertical - 1 Sided
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.217' (5.50mm)
    Locking Feature
    Slide Lock
    Cable End Type
    Tapered
    Material Flammability Rating
    UL94 V-0
    Housing Color
    Natural
    Actuator Color
    Brown
    Mating Cycles
    20
