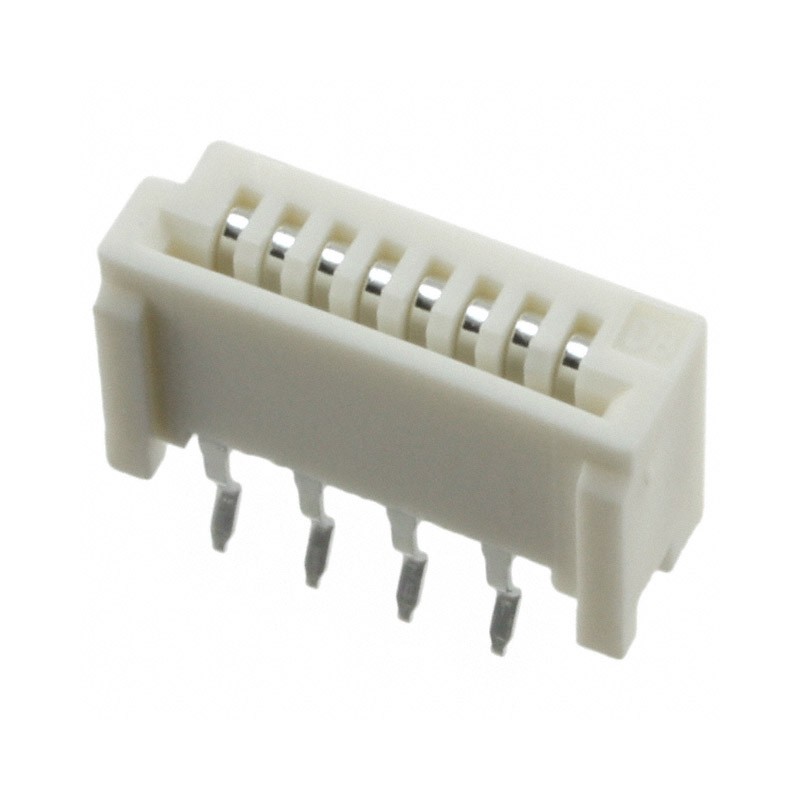

    1 pcs : 84534-8 - CONN FFC VERT 8POS 1.25MM PCB
    • 1 pcs : 84534-8 - CONN FFC VERT 8POS 1.25MM PCB

    1 pcs : 84534-8 - CONN FFC VERT 8POS 1.25MM PCB

    1AllpartsA100278ND
    £8.56
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    8 Position FFC Connector Contacts, Vertical - 1 Sided 0.049' (1.25mm) Through Hole
    Product Details
    TE Connectivity AMP Connectors
    1AllpartsA100278ND
    84534-8
    3 Items

    Data sheet

    Manufacturer
    TE Connectivity AMP Connectors
    Operating temperature
    -40°C ~ 85°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    8
    Series
    -
    Voltage Rating
    50V
    Mounting Type
    Through Hole
    Housing Material
    Polybutylene Terephthalate (PBT), Glass Filled
    Termination
    Kinked Pin
    Features
    -
    Pitch
    0.049' (1.25mm)
    Actuator Material
    -
    Packaging
    Tray
    Base Product Number
    84534
    Current Rating (Amps)
    1A
    Contact Finish
    Tin
    Contact Finish Thickness
    -
    Flat Flex Type
    FFC
    Connector/Contact Type
    Contacts, Vertical - 1 Sided
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.307' (7.80mm)
    Locking Feature
    -
    Cable End Type
    Tapered
    Material Flammability Rating
    -
    Housing Color
    White
    Actuator Color
    -
    Mating Cycles
    -
