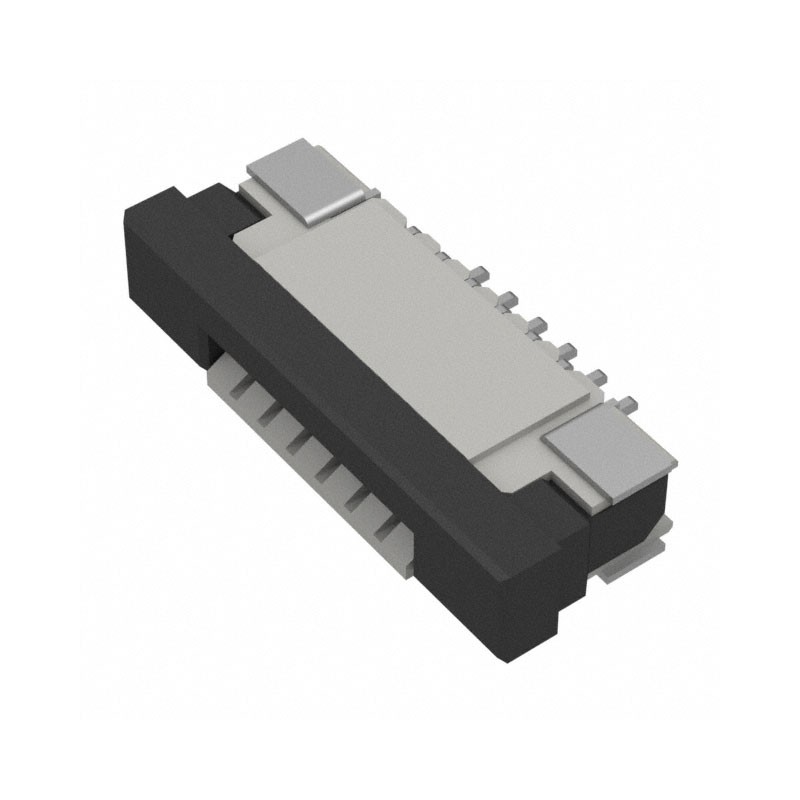

    1 pcs : FFC3B07-06-T - CONN FFC FPC BOTTOM 6POS 1MM R/A
    • 1 pcs : FFC3B07-06-T - CONN FFC FPC BOTTOM 6POS 1MM R/A

    1 pcs : FFC3B07-06-T - CONN FFC FPC BOTTOM 6POS 1MM R/A

    1Allparts2073FFC3B0706TTRND
    GCT
    £8.52
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    6 Position FFC, FPC Connector Contacts, Bottom 0.039' (1.00mm) Surface Mount, Right Angle
    Product Details
    GCT
    1Allparts2073FFC3B0706TTRND
    FFC3B07-06-T
    3 Items

    Data sheet

    Manufacturer
    GCT
    Operating temperature
    -25°C ~ 85°C
    Part status
    Active
    Contact material
    phosphor bronze
    Number of positions
    6
    Series
    FFC3B07
    Voltage Rating
    50V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Thermoplastic
    Termination
    Solder
    Features
    Solder Retention
    Pitch
    0.039' (1.00mm)
    Actuator Material
    Thermoplastic
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Base Product Number
    FFC3B07
    Current Rating (Amps)
    0.4A
    Contact Finish
    Tin
    Contact Finish Thickness
    -
    Flat Flex Type
    FFC, FPC
    Connector/Contact Type
    Contacts, Bottom
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.098' (2.50mm)
    Locking Feature
    Slide Lock
    Cable End Type
    Tapered
    Material Flammability Rating
    UL94 V-0
    Housing Color
    Natural
    Actuator Color
    Black
    Mating Cycles
    20
