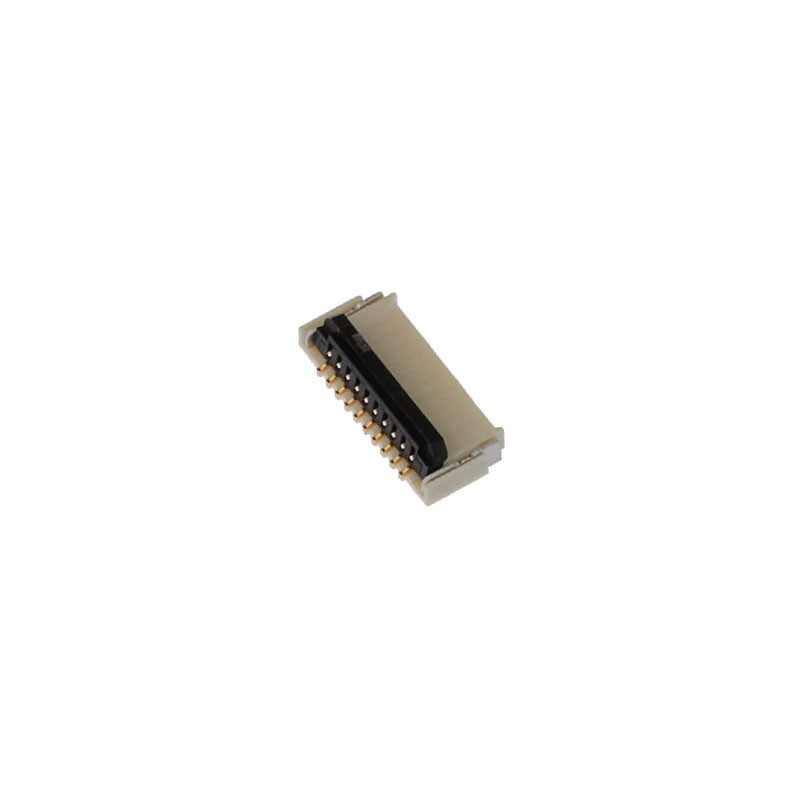

    1 pcs : 1-2328702-0 - CONN FPC 10POS 0.5MM R/A
    • 1 pcs : 1-2328702-0 - CONN FPC 10POS 0.5MM R/A

    1 pcs : 1-2328702-0 - CONN FPC 10POS 0.5MM R/A

    1AllpartsA141390TRND
    £7.80
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    10 Position FPC Connector Contacts, Top and Bottom 0.020' (0.50mm) Surface Mount, Right Angle
    Product Details
    TE Connectivity AMP Connectors
    1AllpartsA141390TRND
    1-2328702-0
    3 Items

    Data sheet

    Manufacturer
    TE Connectivity AMP Connectors
    Operating temperature
    -40°C ~ 85°C
    Part status
    Active
    Contact material
    copper alloy
    Number of positions
    10
    Series
    -
    Voltage Rating
    50V
    Mounting Type
    Surface Mount, Right Angle
    Housing Material
    Thermoplastic
    Termination
    Solder
    Features
    -
    Pitch
    0.020' (0.50mm)
    Actuator Material
    Thermoplastic
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Base Product Number
    2328702
    Current Rating (Amps)
    0.5A
    Contact Finish
    Gold
    Contact Finish Thickness
    3.00µin (0.076µm)
    Flat Flex Type
    FPC
    Connector/Contact Type
    Contacts, Top and Bottom
    FFC, FCB Thickness
    0.30mm
    Height Above Board
    0.041' (1.05mm)
    Locking Feature
    Flip Lock, Backlock
    Cable End Type
    Tapered
    Material Flammability Rating
    UL94 V-0
    Housing Color
    Natural
    Actuator Color
    Black
    Mating Cycles
    -
