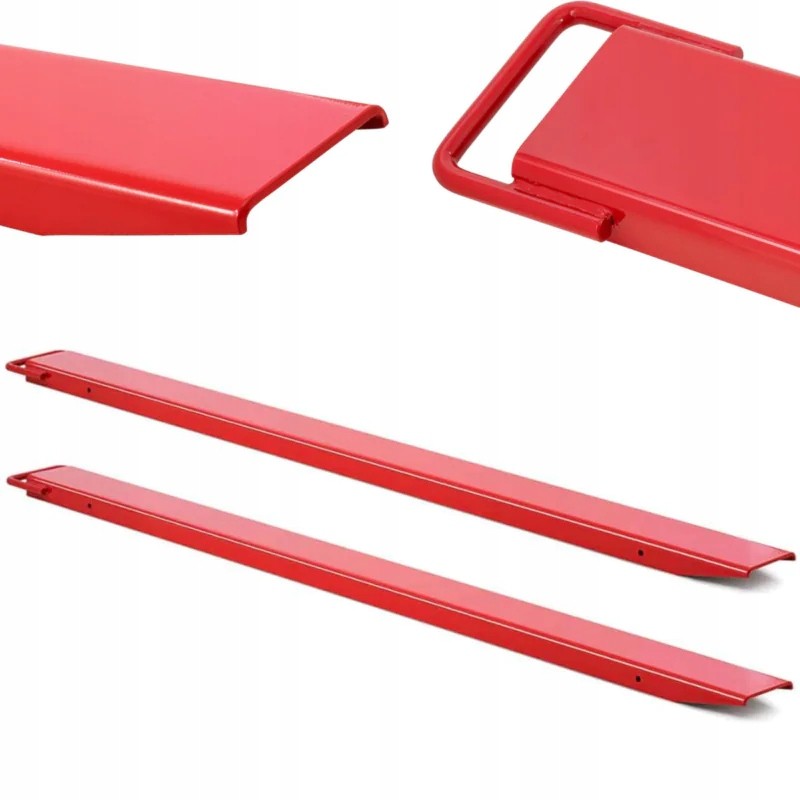

Extensions for the truck's crane forks

Extensions for crane forks of trucks. Manufacturer's code: 10031006. Steinberg Systems fork extensions allow you to transport particularly large goods and pallets. Fork extensions are economical and flexible equipment that can be safely, quickly and easily attached to a forklift without the use of tools. An object with a cross-section of 125 x 60 mm was designed for a fork with a thickness of 50 mm. Approximately 60% of the total length of 2085 mm should lie on the already installed forks, thus achieving an extension of 40% of the specified dimension. The maximum payload depends on the vehicle's payload. Forklift extensions are secured quickly and reliably with a steel strap. They are made of powder-coated carbon steel and fully welded, which ensures maximum stability and long service life. Product features:

- Fork cross-section 125 x 60 mm,

- Extends the original forks by 2085 mm,

- Quick and easy to assemble without any effort,

- Continuously welded carbon steel construction with powder coating,

- Cheaper and space-saving solution instead of buying additional forks.

Technical parameters:

- Catalog number - 10031006

- Article status - New

- Model - SBS-LEQ-204

- Material - Carbon steel

- Lifting height [mm] - 52

- Fork length [mm] - 2085

- Fork cross-section [mm] - 125 x 60

- Dimensions (LxWxH) - 216 x 16 x 7 cm

- Weight - 59 kg

- Shipping dimensions (LxWxH) - 223 x 27 x 12.5 cm

- Shipping weight - 64 kg

Included:

- Fork extensions

- User manual
