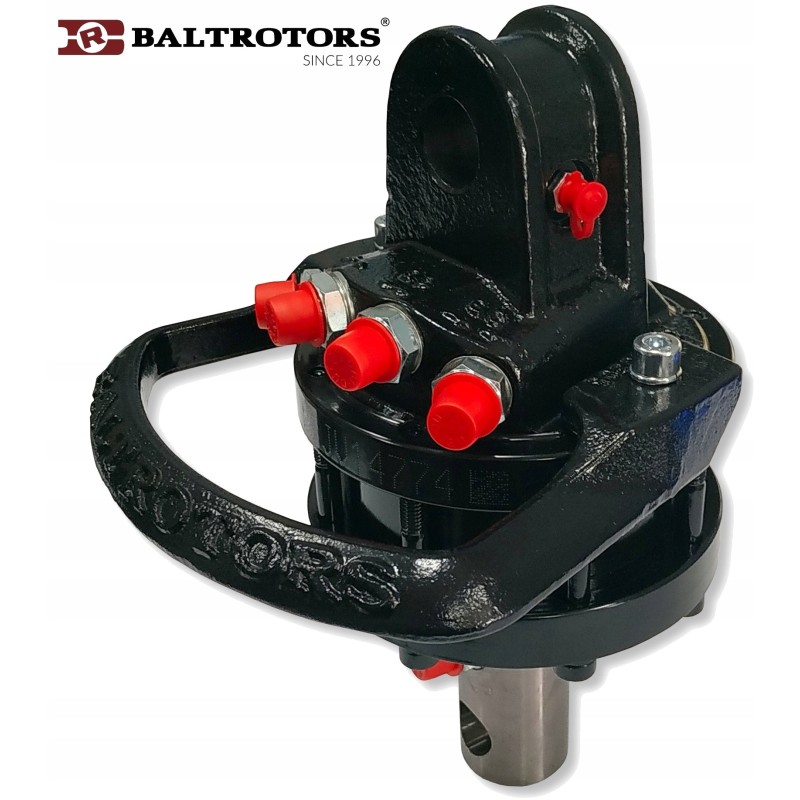

Hydraulic rotator gr10 turntable grab ATV 1t

Hydraulic rotator (rotator) GR 10 from the renowned Latvian company BALTROTORS, a leader in the production of the most durable and best rotators for forestry, agricultural, construction trailers, mounted on trucks or off-road vehicles. SKRAW-MET CODE: [2201]​The rotator is a hydraulic-mechanical device mounted on loading and unloading machines, intended for use on hydraulic cranes, mainly in forestry (wood harvesting). The rotator is mounted on the tip of the crane and accessories (grapple and bucket).

The rotator is uniquely used as an element of lifting and transport devices.

Symbol: GR10

​This rotator is a light, economical solution suitable for ATVs - i.e. all off-road vehicles, small vehicles agricultural or forestry.

The rotator has two independent channels enabling oil to flow to the cylinder or cylinders of the gripper, thanks to which an unlimited angle of rotation is possible without the risk of breaking the hydraulic lines.

​

​Properties: axial load capacity 1 ton

useful standard rotator

principle of operation of the engine diaphragm

2 grapple lift/lower oil ports

GR = Rotator Grapple for axial load only.

ROTATION: UnlimitedTo connect the hydraulic system to the rotator, please refer to the symbols on the rotator housing, axle or linkage:

() GO - Open Grapple ,

(->,G<,-) GC - Closed gripper,

R - Rotator port,

[1][2] - Additional hydraulic port.​

Upper connection - eyelet shape of the knuckle jointLower connection - Shaped axle for installation in the gripper /tool.For safety reasons, check and tighten the screws every 250 operating hours.​Maintenance instructions: Lubricate the bearings every 8 operating hours through the oil holes.

Every 250 operating hours, please pay attention to the following details:

The axle is tightened with the appropriate torque,

the upper and the lower connection does not have any cracks and the screws are not damaged,

The operating wear of the connecting links does not exceed the permissible value.

Technical specifications: Maximum static load: 1019.72 kilograms (1T)

Maximum dynamic load: 509.86 kilograms

Torque at 250 Bar : 450 Nm

Hydraulic connections: G1/4'

Recommended flow: 10 l/min

For the rotator to operate in accordance with the highest standards, it is necessary to use oil without impurities such as water or abrasive substances. Particles in the hydraulic oil after filtration cannot be larger than 10 μm.

Maximum operating pressure: Rotator: 250 Bar

Gripper opening: 200 Bar

Gripper closing -->,G<,--: 300 Bar

Rotator weight: 10 kg​ Each rotator is accompanied by an operating manual.
