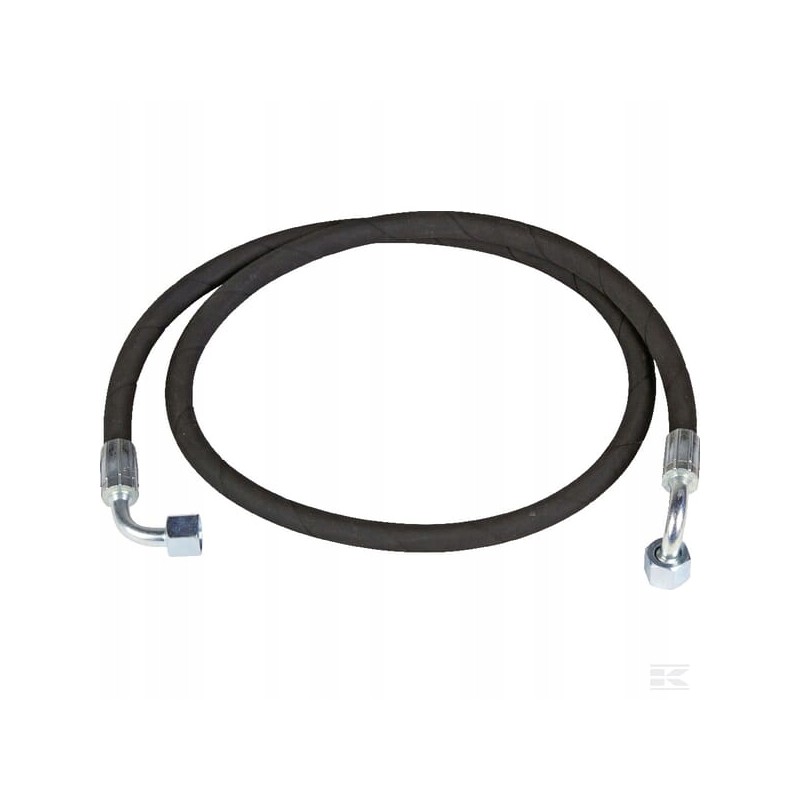

Hydraulic hose pipe dn10 18 18 kk3000 330bar

Hydraulic Hose 2SN-3/8' DN103m Application: Hydraulic hoses are perfect for hydraulically powered machines and devices. They can be used in agriculture, horticulture, forestry and construction.

Pressure hydraulic lines are self-sealing after tightening. They are used to connect individual components of hydraulic systems, including: actuators, distributors, tanks and engines.

Thanks to its universality, it can be used in any system with a maximum oil pressure of 330 bar and a flow of up to 80 L/min.

It is intended for indoor and outdoor use.

Technical Specifications: Number of braids: 2

Internal diameter of the passage (DN10): 10 mm

External diameter of the hose: 16.90 mm

Cable length: 3000 mm

Maximum pressure: 330 Bar

Maximum flow: 80 L/min

Threads on the ferrules: 1 * angle M18x1.5 + 1*angular M18x1.5

The cable is flexible and resistant to weather conditions. Enjoy shopping.
