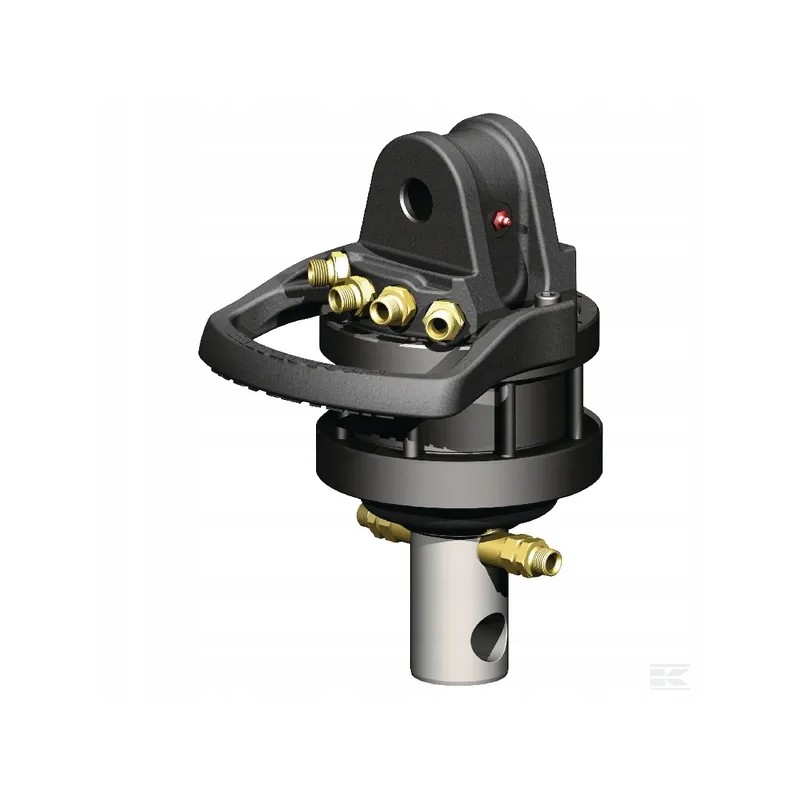

Rotator gr 46 4000 kg

Rotator GR 46 (4000 kg)Application:

Part number: GR46

Unit: Piece

Specifications: Rotator Grapple

Application:

Suitable for adaptation to almost any crane

Commercial vehicles

Forestry industry

Features:

Axial load capacity from 1 to 16 tons

Useful standard rotator

Diaphragm motor working principle

2 oil ports for lifting/lowering the gripper

Technical information:

GR = gripper rotator for pulling axial loads only.

GR-DB = double bearing gripper rotator for pulling and pushing axial loads .

Benefits: Continuous rotation motion

Mounting: cam B=73 mm, bore 25 mm

Connection size: 3/8 inch

Flow rate: 20 l/min

Tension limit: 45 kN

Axial load max.: 4000 kg

Load axial dynamic max.: 25 kN

Axial static load max.: 45 kN

Working pressure max.: 250 BAR

Working pressure max.: 25 MPa

Mounting (from the ground side):

shaft diameter 59 mm, hole 30 mm

Torque Nm: 1200 N m

Oil connection [NPTF]: 4 inch

Pressure: 250 BAR

Recommended flow: 20 l/min

Direction of rotation: any

Rotator mounting: cam B = 73 mm, bore 25 mm

Working connections [BSP]: G 3/8 inch

Tool mounting: shaft 59 mm, hole 30 mm

Weight: 23 kg
