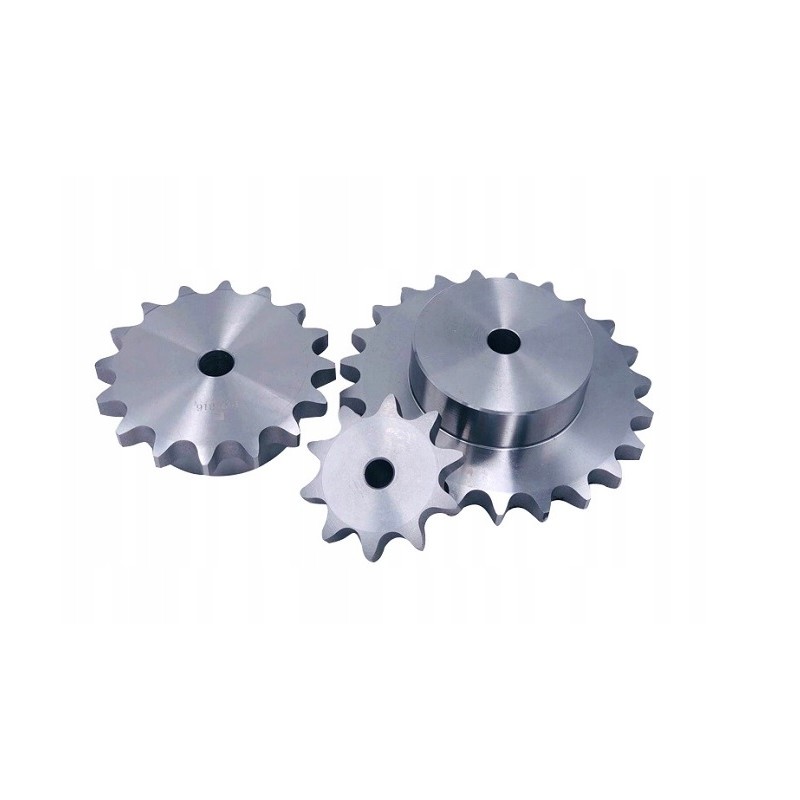

Chain sprocket 1 2 x5 16 z35 standard

CHAIN WHEEL 1/2'X5/16' Z35 STANDARD Universal chain sprocket

Technical data: *hardened teeth

*made of high-quality steel

*number of teeth: 35

*DIN 8187

*dimension: 1/2'

*chain pitch: 12.7 mm - chain type 08B1

*tooth radius (r3): 13.5mm

* tooth B1 height: 7.4 mm

*outer diameter (de): 146.7 mm

*hole diameter (D1): 16 mm

*width: (A): 30 mm

*hub diameter (dm): 90 mm

*type: single

*standard wheel

*with hub on one side

Application: -universal wheel for versatile applications
