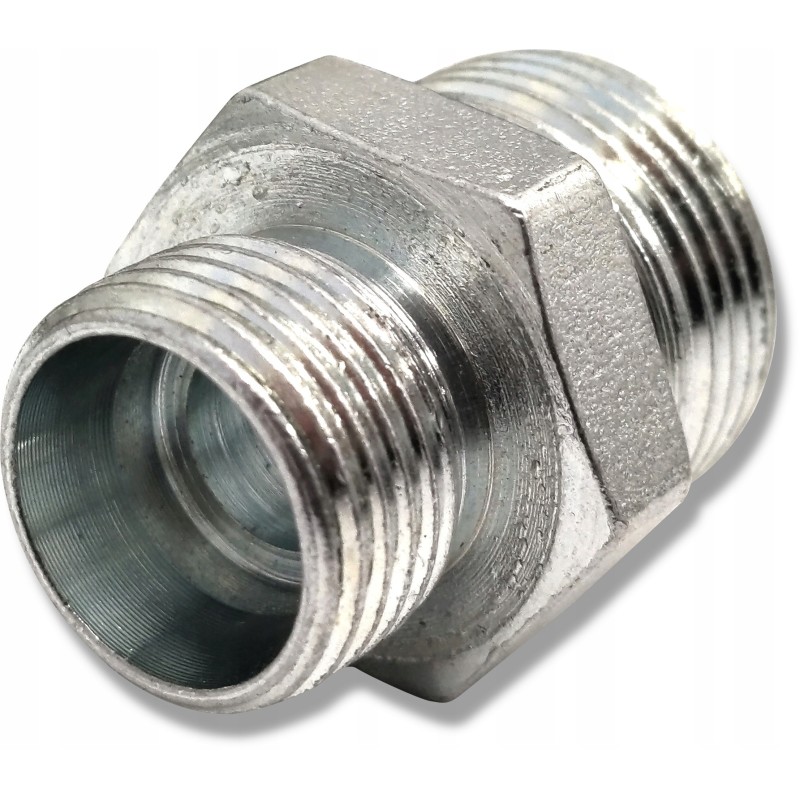

Straight hydraulic reduction, nipple 22 22 m22x1 5
  • Straight hydraulic reduction, nipple 22 22 m22x1 5
  • Straight hydraulic reduction, nipple 22 22 m22x1 5

Straight hydraulic reduction, nipple 22 22 m22x1 5

15013143583504
£10.78
Quantity
5 Items

Description
STRAIGHT HYDRAULIC REDUCTION NIPEL M22 - M22 Application:

Hydraulic reduction is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

It is used to connect the main components in the hydraulic system with hydraulic lines.

Responsible for connecting a hydraulic pipe or elbow. Sealing occurs after tightening the joints on the self-sealing cone. This ensures complete sealing of the system.

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Total length H: 30 mm

Nominal diameter of the passage: 10 mm

M1 thread on the cable side: external metric 22x1.5

M2 thread from the cable side: external metric 22x1.5

Connection version: light

Nominal pressure: 180 bar

Maximum pressure: 230 bar

Liquid type: hydraulic oil

[2017]

Material:

weldable, galvanized steel, corrosion-resistant

Product Details
15013143583504
2017.22-22NYS54
5 Items
New

Data sheet

Manufacturer
Other (SM)
Part Number
2017.22-22NYS54
Machine Brand
Bizon, Case IH, Claas, Deutz-Fahr, Fendt, Ford, JCB, John Deere, Lamborghini, Landini, Massey Ferguson, MTZ Belarus, New Holland, Renault, Same, Ursus, Zetor, Other
