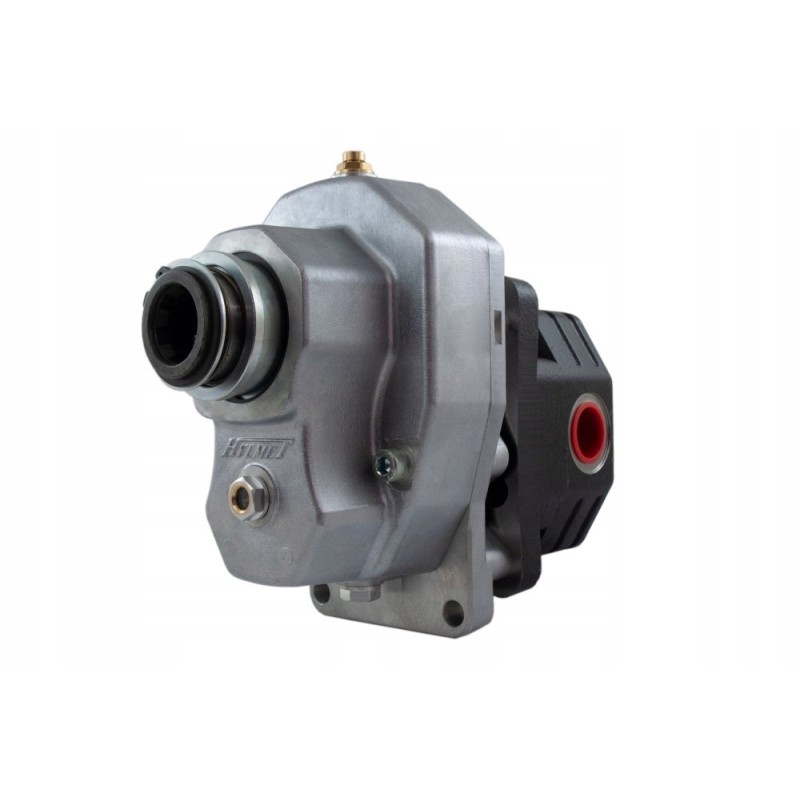

Gear multiplier 1 3 56l with hylmet pump

PZ30-PTO.CE.NE Multiplier Gearbox with Cast Iron Pump, capacity 56L/min Hylmet TucholaMultiplicator With Cast Iron Pump

* HYLMET gears have a thick, solidly made casing, helical gears, smaller dimensions and 7 bearings ensuring failure-free operation. We have spare parts for all the products we produce.

* This type of gearbox/sets with a PTO pump can be used in agricultural, forestry and industrial hydraulics.

* Gear technical data:

A durable, failure-free transmission that you can rely on for years. Product 100% Polish production.

Gear based on helical teeth, guaranteeing quiet and comfortable operation (-15dB) and high transmitted power (+50%*).

HYLMET gears, thanks to their thick, solid housing (minimum thickness 7 mm) and as many as 7 bearings, are ideal for heavy-duty applications.

The multiplier has standard mounting holes around the latch and two additional holes thanks to which there is no need to install additional accessories such as a driver.

* Multiplier power: 30 kW (guaranteed)

* Gear ratio: 1:3.0

* Efficiency: 56L/min

* input turnover: 540

* output revolutions: 1620

* max input torque: 530 Nm

* max output torque: 175 Nm

* Advantages of NE series pumps * Designed for continuous operation under heavy load.

* Higher efficiency - the volumetric efficiency of new generation pumps is approximately 2-5% higher than pumps of 'classic' design.

* Fewer components - the new pump design reduces the number of parts. This is possible thanks to the implementation of technology with much higher accuracy of both bodies and covers, but above all gears (teeth in the 6th accuracy class). Thanks to this, the pumps achieve higher durability and at the same time lower weight.

* Smaller pump dimensions - new generation pumps are shorter towards the wheel axles by about 15%. They retain the same parameters as the 'classic' design.

-️Country of origin: POLAND

-️Producer: Tuchola Hylmet

-️Buy Polish products and enjoy high quality!
