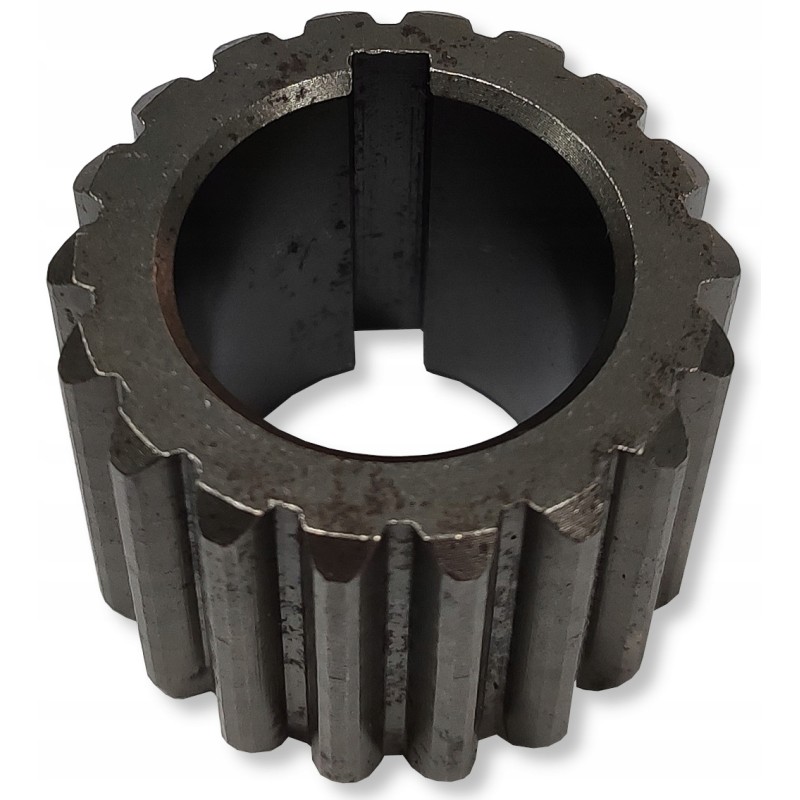

Pump multiplier clutch sleeve gr3 35x30 z18

SPLINE BUSHING GR3 35X30 Z18 1:8 SKRAW-MET CODE: [1208] Splined bushing, connector of the pump shaft with the driving element, e.g. conical shaft 1:8

The hydraulic cylinder is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry, construction and industry in general.

Splined bushing 35x30x18 GR3

Technical Specification: Total length (L1): 26 mm

Number of external milling cutters: Z18

Keyway: 2 mm - 3 mm

Internal bore: conical 1:8

Internal width: from 18 mm - to 21 mm

External diameter: 35 mm

Spline (D1): Z18 x 35 x 30
