Generator pump power supply 3 0kw 24v 13l wireless

24V 3.0kW hydraulic unit with wireless remote control SKRAW MET CODE: [8096] Manufacturer: SM-G (SKRAW MET GROUP) Allows you to control a single-acting actuator.

The actuator extends under the influence of pressure, and retracts using gravitational forces and the lifted weight.

The unit is complete and ready for operation, just connect the cables and pour oil. Recommended continuous operation for no longer than 3 minutes, restarting after 5 minutes of rest.

Application: The unit is perfect for electrically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

It is adapted for unloading work. load box in trailers, dump trucks, hydropacks, races, lifts, loading platforms, car lifts, cranes, agricultural and industrial machines.

Technical specifications: Engine power: 3.0 kW

Electrical voltage: 24 V

Oil tank capacity: 13 L

Maximum operating pressure: 180 bar

Pump capacity: 2.6 cm3/revolution, in this set 7L/min to 12L/min

Internal thread connection: 3/8'

Overflow valve (safety): YES

Dimensions: Unit length : 780 mm

Tank length: 545 mm

Unit width: 170 mm

Tank width: 170 mm

Unit height: 200 mm

Tank height (from the base to the tip of the cap): 205 mm

REMOTE CONTROL WITH 2 BUTTONS Solid construction It is a dedicated remote control with two buttons, used mainly in hydraulic units powered by 12V / 24V.

Equipped with a mounting pocket that, if necessary, can be attached to two holes with a diameter of 5 mm.

There are also magnets on the back of the remote control, thanks to which the remote control can be attached to metal elements .

Additionally, the remote control includes a cable of approx. 4.4 m with a screw-on 3-pin plug.

All elements are made only of durable, high-quality materials.

Wireless radio remote control 12v / 24v, two-function (top - bottom )The remote control is used for hydraulic units and derivatives of this type of devices, such as winches/winches or loading elevators.

The remote control is hermetic.

It can be used in agriculture, horticulture, forestry or construction.

The remote control is supplied with: a cover

receiver

leash

9V battery

Technical specifications: voltage: 12V / 24V

range: up to 50 m

housing: PVC + protective silicone cover power supply: 9V battery

remote control dimensions: 150 x 80 x 34 mm receiver dimensions: 60 x 44 x 23 mm

cable length: 215 mm

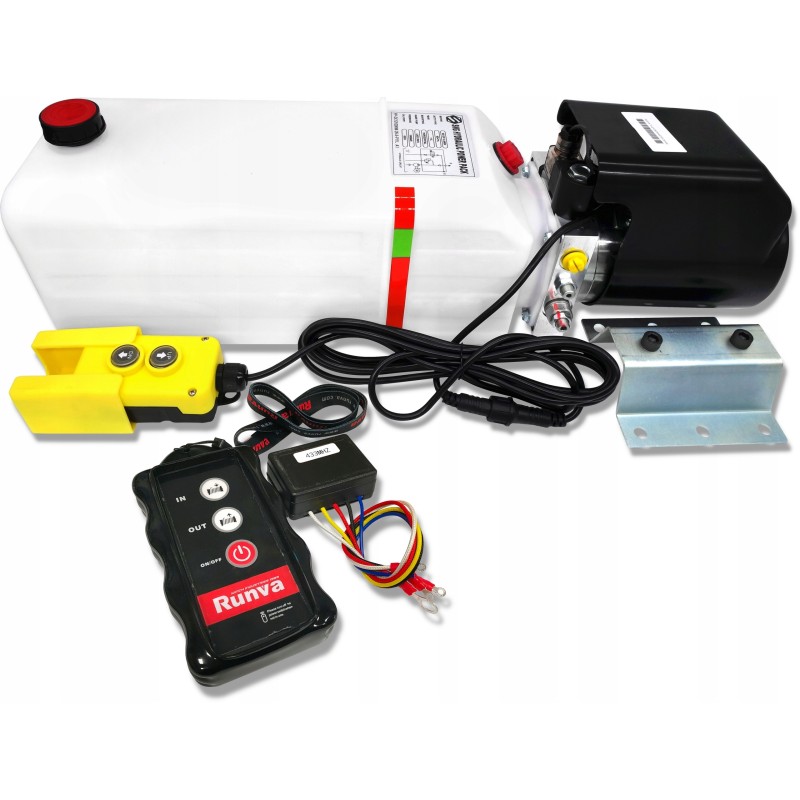

Each unit has a working diagram of the hydraulic system attached to it. The set includes: pump electric motor

connecting plate

tank

remote control

wireless remote control

The unit additionally has a plastic cover for the engine and a mounting kit.

Legend of markings:+ Power supply (positive potential), connected directly to the battery

- Power supply (negative potential), connected directly to the battery

A - connection port (G3/8')

B - regulation of descent speed

C - regulation of oil pressure
