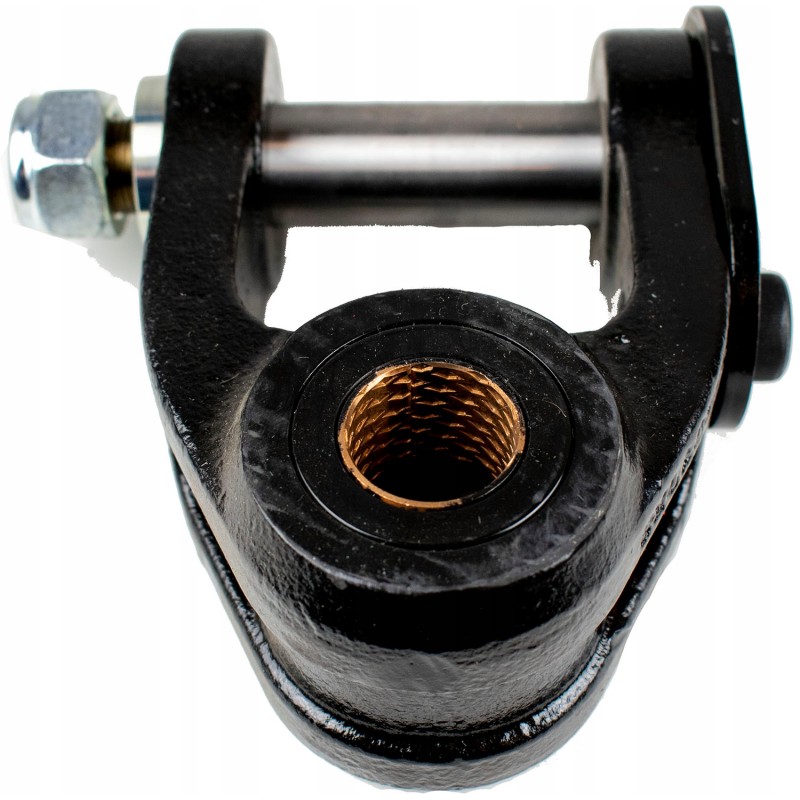

Baltrotors BR1 80 30 rotator connector

BALTROTORS BR1/80/30 ROTATOR CONNECTOR The best value for money! The BR1/80/30 rotator connector from the renowned Baltrotors brand has a maximum lifting capacity of 5.5 tons. The connector has standardized dimensions that fit many rotators and cranes. Baltrotors products enjoy an exceptionally good reputation on the market due to their failure-free operation even when used in difficult working conditions. Connector designed to work with a truck crane and rotator.

TECHNICAL SPECIFICATION Maximum lifting capacity: 5.5 t

Weight: 5.7 +/- 0.5 kg

Upper mounting (for the crane): width B - 80 mm, hole diameter D - ø 30 mm

Lower mounting (under the rotator): width - 61.5/76.5 mm, pin diameter - ø 25 mm

Brake: none

TECHNICAL DRAWING NOTES The nut securing the pin (C) should be tightened with a torque of 120 Nm

Lubricate with using Statoil Uniway Li62 grease (or equivalent) through the grease nipple (A) until it appears on the outer surface. Lubrication should be repeated after 8 hours of operation of the connector

N - serial number
