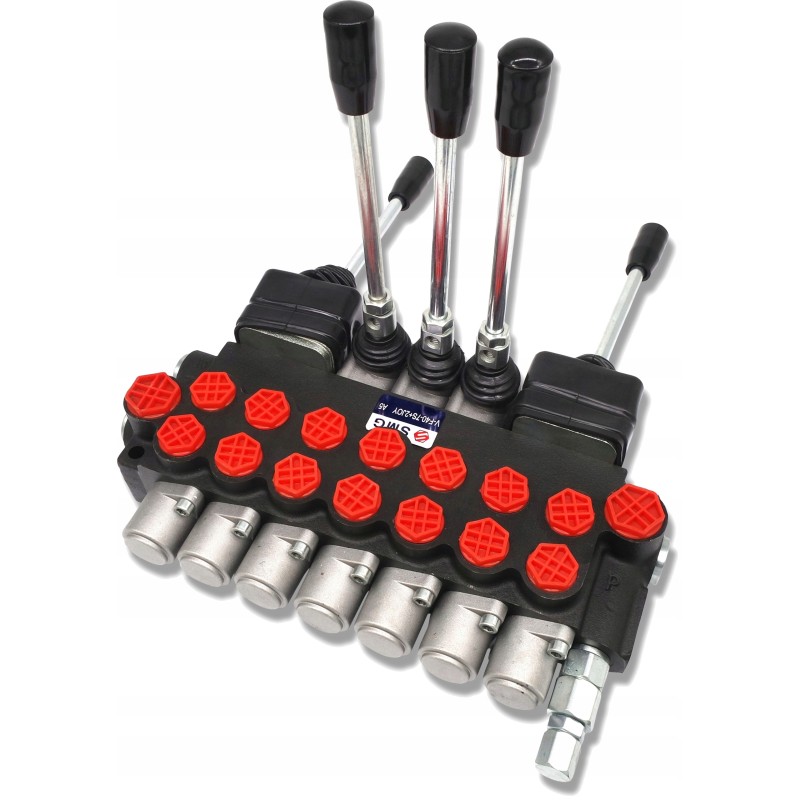

Hydraulic distributor 7 sec 40l with joysticks

7-SECTION HYDRAULIC DIVIDER, 40L, WITH JOYSTICKS AND LEVER, SKRAW MET code: [2216] Manufacturer: SM-G (SKRAW MET GROUP) The high-quality, monoblock distributor is characterized by a compact structure, stable operation and high versatility.

Allows you to control seven double-acting cylinders.

It is possible to connect in series to an existing system.

Application: The distributor is perfect for hydraulically powered machines and devices. It can be used, among other things, to press the blade in snow plows.

It can be used in agriculture, horticulture, forestry and construction.

Universal distributor, used in various types of machines such as: Cyclops

Turres

Loaders

Plows

Forklifts and many others

Five-position joysticks (1 - 2 - 0 - 3 - 4) on a spring returns to the vertical on its own

Position 0 neutral (joystick set vertically), the actuator piston rod is standing - the oil goes to the overflow.

Position 1 working (joystick set in an oblique position forwards) ) the piston rod of the first actuator extends

Working position 2 (joystick set in an oblique position backwards) the piston rod of the first actuator retracts

Working position 3 (joystick set in an oblique position to the left) the piston rod of the second actuator extends

Working position 4 (joystick set in diagonal position to the right) the piston rod of the second actuator retracts

Three-position levers (1 - 0 - 2) springs back to the vertical by itself

Position 0 neutral (lever set vertically) the piston rod of the actuator stands - the oil goes to the overflow.

Working position 1 ( lever set in an oblique position forward) the actuator piston rod extends

Working position 2 (lever set in an oblique position backwards) the actuator piston rod retracts

Connection: Power supply (P) BSP 1/2''

Return (T) BSP 1/ 2''

Output to BSP 3/8'' sections

BSP connection 1/2'

Technical specifications: Oil flow: 0 - 40 l/min

Maximum working pressure: 300 bar

Permissible ambient temperature: -40℃ to + 60℃

Permissible oil temperature: -15℃ to +80℃

Equipped with a safety valve.
