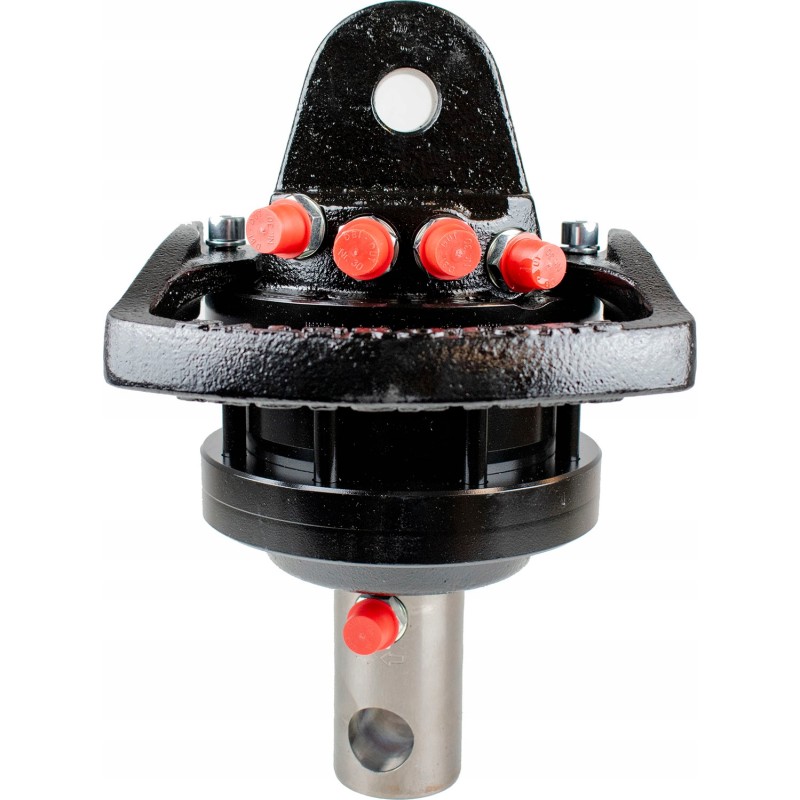

Rotator baltrotors gr46 4 5t hds fasi rotator

BALTROTORS GR46 ROTATOR 4.5 TONS The best value for money! The GR46 model rotator from the renowned Baltrotors brand has a maximum static load capacity of 4.5 tons and unlimited rotation. The swivel head has standardized dimensions that fit most cranes and accessories. Baltrotors products enjoy an exceptionally good reputation on the market due to their failure-free operation even when used in difficult working conditions. Rotator designed to work with a truck crane and accessories such as a timber grab, bucket or pallet fork.

TECHNICAL SPECIFICATIONRotation: unlimited

Maximum axial lifting capacity (static): 45 kN

Maximum axial lifting capacity (dynamic): 25 kN

Torque ( at 25 MPa): 1100 Nm

Recommended oil flow: 20 l/min

Own weight: 24 kg

Upper mounting (for connector): width - 73 mm, hole diameter - ø 25 mm

Lower mounting (accessory): pin diameter - ø 59 mm, hole diameter - ø 30 mm

MAXIMUM OPERATING PRESSURERotator <,- R ->,: maximum 25 MPa (G 3/8 inch)

Grapple/attachment opening <,- G ->,: maximum 20 MPa ( G 3/8 inch)

Gripper/accessory closure ->, G <,-: maximum 30 MPa (G 3/8 inch)

TECHNICAL DRAWING LegendR - rotator

O - gripper opening

Z - gripper closure
