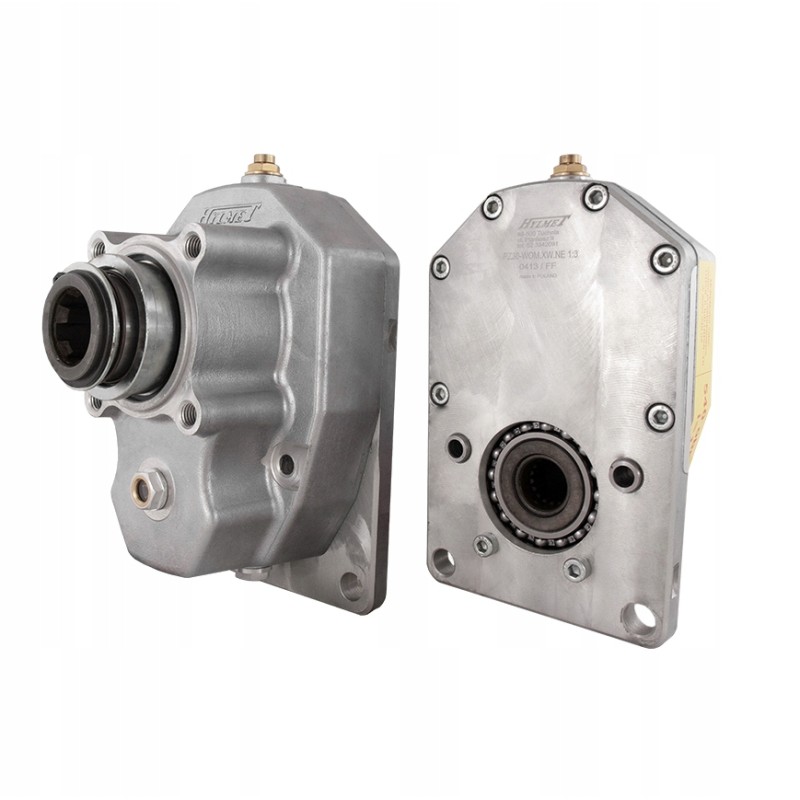

Female pto multiplier for a forest trailer

MULTIPLICATOR (replacement of ML52) with a power of 30kW HYLMET FOR GEAR PUMPS FROM THE PZ30-WOMPZ30-PTO.XW.NE SERIES 1:3 Durable, failure-free gear that you can rely on for years. Product 100% Polish production.

Transmission based on helical teeth, guaranteeing quiet and comfortable operation (-15dB*) and high transmitted power (+50%*).

Multipliers of this type are used in hydraulic systems intended for agriculture, forestry and small orchard tractors (compact dimensions). They are ideal wherever the hydraulic capacity is too low.

HYLMET gears, thanks to their thick, solid housing (minimum thickness 7 mm) and as many as 7 bearings, are ideal for heavy-duty applications.

The multiplier has standard mounting holes around the latch and two additional holes holes thanks to which there is no need to install additional accessories such as a driver.

.

* compared to Chinese or 'Italian' gears with a ratio of 1:3.8 max 20 kW.

FREE!! FREE gear oil!! Technical data: Multiplier power: 30 kW (guaranteed)

Gear ratio: 1:3.0

input revolutions: 540

output revolutions: 1620

max input torque 530 Nm

max output torque 175 Nm

Possibility of installing PZ30-PTO series pumps:

bolt spacing 100 mm

Pump flange diameter:

71 mm

PTO socket: PTO 1.3/8' DIN9611 standard - 6 cutters

Compact dimensions (15x23cm) guarantee installation in any type of tractor .

The PZ30-PTO gearbox is an equivalent of the ML52 gearbox.

Comparison of both gearboxes with a 35cm3/rev pump

The HYLMET gearbox can operate at a pressure of 320 bar

The imported gearbox can operate at a pressure of 170 bar

Comparing operation at a pressure of 200 bar

capacity 90 l/ min can be achieved with the HYLMET gearbox

performance of 60 l/min can be achieved with the imported gearbox
