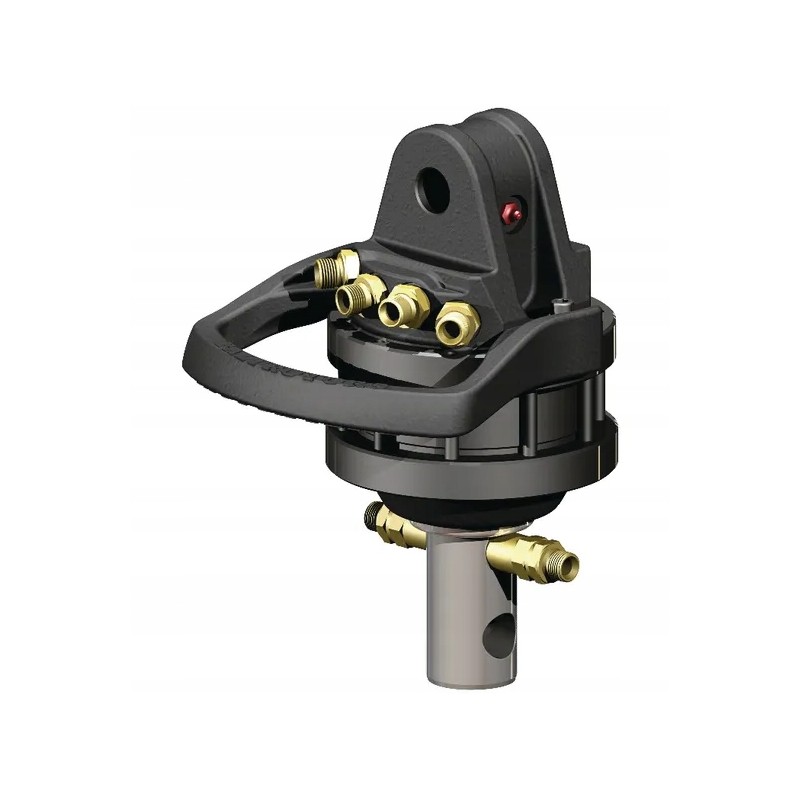

Hydraulic rotator gripper gr30 3000kg baltrotors

3-TON HYDRAULIC ROTATOR

APPLICATION:

Suitable for adaptation to almost any crane

Commercial vehicles

Forest industry

Features

Axial load capacity from 1 to 16 tons

Useful standard rotator

Diaphragm motor operating principle

2 oil connections for lifting/lowering the grab

Information technical

GR = gripper rotator only for pulling axial loads.

GR-DB = gripper rotator with double bearing for pulling and pushing axial loads.

Benefits - Continuous rotary motion

Mounting - cam B=60 mm, hole 25 mm

Connection size -3/8 inch

Flow - 20 l/min

Stress limit - 30 kN

Axial load max. - 3000 kg

Axial dynamic load max. - 15 kN

Axial static load max. - 30 kN

Working pressure max. - 250 BAR

Working pressure max. -25 MPa

Mounting (from the ground side)

shaft diameter 49.5 mm, hole 25 mm

Torque Nm - 900-1000 N m

Oil connection [NPTF] - 4 inch

Pressure - 250 BAR

Recommended flow - 20 l/min

Direction of rotation - any

Rotator mounting - cam B = 60 mm, hole 25 mm

Working connections [BSP] - G 3/8 inch

Tool mounting - shaft 49.5 mm, 25 mm hole
