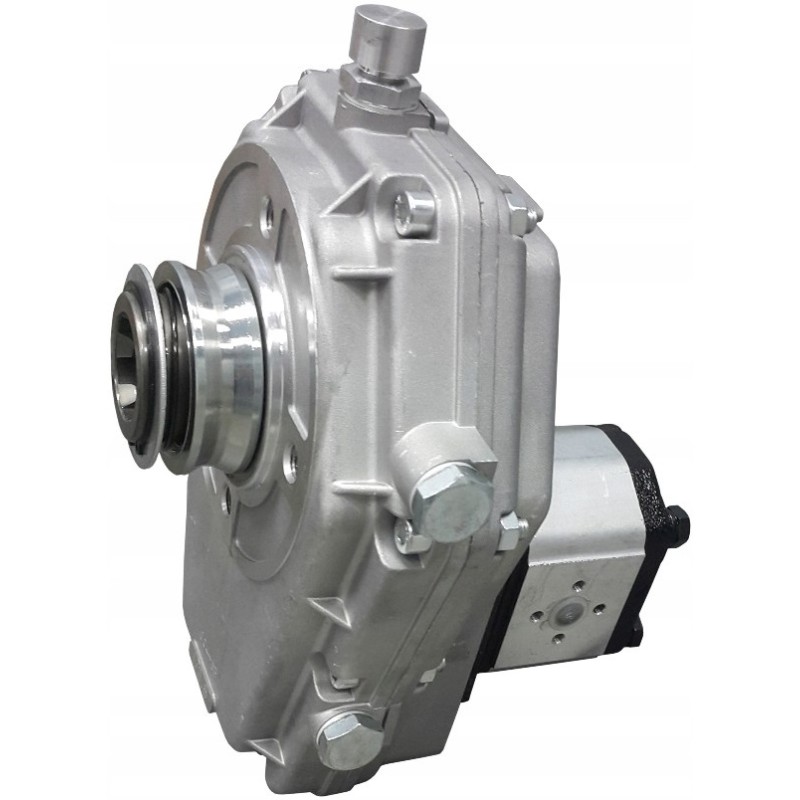

Gear multiplier pump gr2 karo 4cm3 6l

MULTIPLICATOR WITH HYDRAULIC PUMP SKRAW-MET CODE: [7004] MULTIPLICATOR TRANSMISSION 1:3.8

TYPE 60004-6 WITH A SOCKET FITTING THE TRACTOR'S PTO SHAFT

GROUP 2 GEAR HYDRAULIC PUMP 4cm3/rev 6L

MULTIPLICATOR CLUTCH EMPTY

MULTIPLICATOR GEAR WITH RATIO 1:3.8 gr 2

SKRAW-MET CODE: [0198] TYPE 60004-6 (small) Power take-off shaft gear with a 1 3/8' 6-piece profiled sleeve. The gearbox is supplied with a clutch sleeve (group 2), but without oil.

Perfect for driving hydraulic pumps in forestry and construction machines and many tractors, including C-330, C-360, C-385, ZETOR, MF and others with a PTO output.

The gearbox is mounted on the 1.3/8' DIN9611 PTO shaft using a latch, this solution means that it can be mounted or removed quite quickly if it turns out that we need a PTO shaft to connect the PTO shaft from another machine .

The gearbox is ideal for driving hydraulic pumps of group 2 (20) with a European type flange.

Technical data of the gearbox: Gear ratio: 1:3.8

Pump shaft type: conical 1:8

Maximum power consumption (kW) : 10

Number of revolutions max. (rpm):

Input: 540

Output: 2052

Torque (da Nm):

Input: 15.9

Output: 4.2

Material:

body - aluminum

gears - steel

Requires filling with gear oil.

Recommended oil: SAE 90

Equipped with a sight glass for checking the gear oil level.

When used for the first time, to increase the life of the gear, it is recommended to change the oil after the first 50 operating hours.

GROUP 2 HYDRAULIC PUMP GEAR 4cm3/rev CODE CUTTING-MET: [1166]RIGHT SPEED

Gear hydraulic pumpALHP2-B0-X-4 Capacity 4cm3/rev. Can be used in agriculture, horticulture, forestry and construction.

It is adapted to work in: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others

Our elements are characterized by high quality of the material from which they are made. We recommend purchasing better parts that will extend the life of the device and reduce the risk of damage and uncontrolled stops.

Technical specifications: direction of rotation: right

speed range: 600 - 4000 (rpm)

Type of connections: Discharge side: 1/2'

Side suction: 1/2'

Diagonal connection hole spacing (opposite each other): 1/2' - 30 mm

Pressure in continuous operation: 270 bar

Pressure in temporary operation: 300 bar

Features and advantages: Gear pumps made of alloy aluminum and cast iron body and rear covers.

High volumetric efficiency thanks to innovative design and precise control of machining tolerances.

Axial compensation is achieved by movable bushings that enable high volumetric efficiency over the entire pressure range.

DU bearing ensures high pressure.

Two-piece integral one-piece gear and shaft.

Double shaft seals.

Nitrile seals as standard and high temperature Viton seals.

Available with flanges, shafts and ports for major European, German and SAE standards.

Available with multiple rear covers with built-in valves .

Extremely compact 2.5PB / 2.5PB multi-mount pump design.

Multi-stage pump mounting also available in combination with 2PE and 1.5PB types.

All pumps are post-installation and run-in tested to ensure a high standard.
