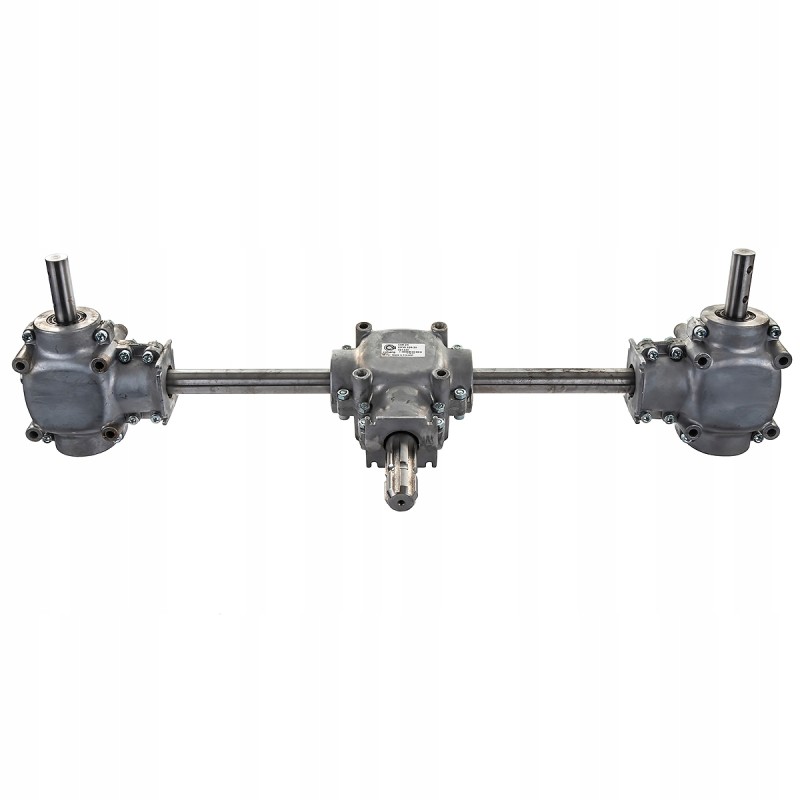

A strong set of 3 aluminum gears for the fertilizer spreader

Gearbox for double fertilizer spreader 770mm 1:1.35 90x90 MIZAR number: 69713

Gearbox for double fertilizer spreader 770mm 1:1.35 90x90

Complete gear, fertilizer spreader gear unit, mounted on a latch Technical information:

Mounting: profiled 6-spline PTO shaft 3/8', 90 mm long

Maximum power consumption: 16 (22 HP)

Maximum output torque: 210Nm Gear ratio: 1:1.35

Spacing of mounting screws: 90x90mm Spreading disc shaft diameter: 25mm Roller spacing: 770mm Lubricating material: gear grease 0.75L

Maximum number of revolutions:

Entry: 540

Output: 729

Application: trailed double-disc fertilizer spreaders, ABRA, BRANDI, DEXWAL, GRASS-ROL, JAR-MET, PRONAR, STRUMYK, WOPROL, spreaders, in various types of forestry, construction, agricultural and industrial machines

Dimensions given in the diagram

MIZAR number: 69713
