Hydraulic rotator hds loader crane gr3 3t

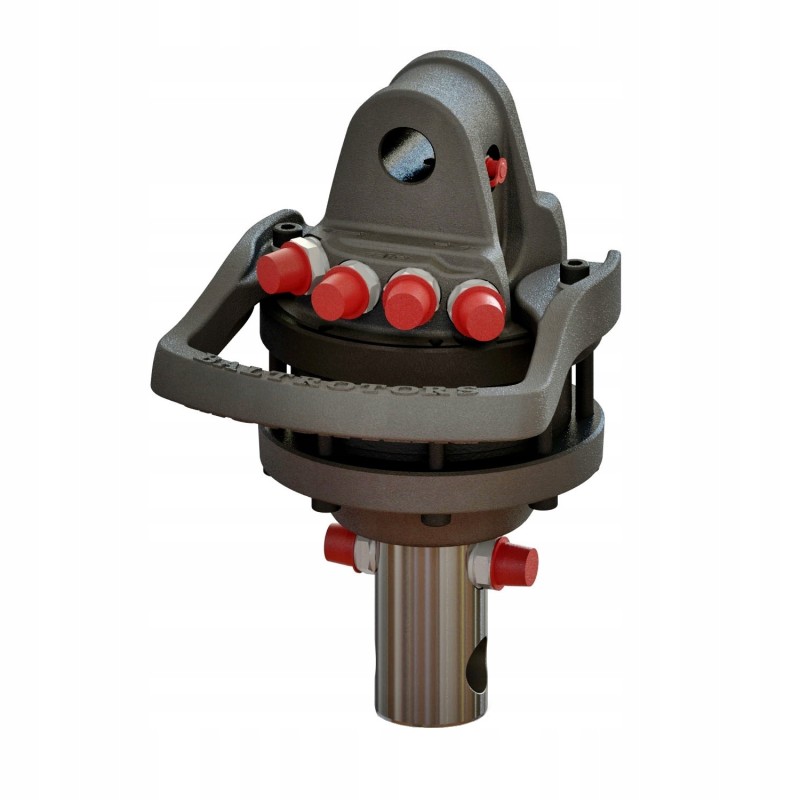

HYDRAULIC ROTATOR GR30 ROTATABLE Producer:

Baltrotors, symbol: GR30 1.51.00.003

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Original rotator from the renowned and world-renowned Latvian company Baltrotors, leader in the production of the strongest and least failure-prone rotators. Very versatile applications: Forestry trailers, self-loading grabs, bulk material loaders, HDS cranes, boom mowers, scrap loaders and others.

The rotator can be successfully used as a powerful drive for drilling rigs, it has two independent channels supplying oil to the turntable, thanks to this, an unlimited angle of rotation of the rotator tip is possible without the risk of breaking the hydraulic lines.

Technical data:

Maximum static load (without rotation): 3000kg

Maximum dynamic load (with rotation): 1500kg

Torque (25MPa) : 800Nm

Recommended flow: 20L/min

Total weight: 15kg

Threads on connection ports: 3/8'

Maximum pressure when turning: 25MPa

Maximum pressure when opening the gripper: 20MPa

Maximum pressure when opening the gripper: 30MPa
