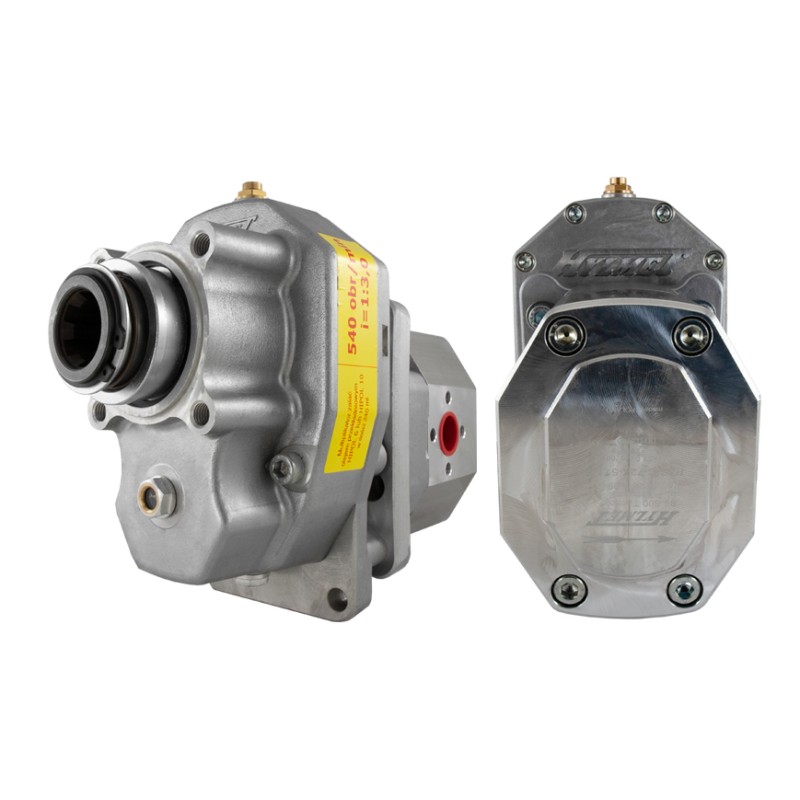

Strong set for PTO multiplier pump 68l min

modern multiplier + gear pump for a forestry trailer and other hydraulic devices. At this auction you are purchasing a set: PZ30-PTO.XCE.NE 1:3 + PZS-C-72X.NE-43 A set intended for forestry trailers and agricultural tractors. It is ideal wherever the hydraulic capacity is too low. Thanks to this solution, your equipment will operate faster, more efficiently and will increase the load capacity of all devices to which it is connected.

FREE!! FREE gear oil!! Technical data of the gear: Durable, failure-free gear that you can rely on for years. Product 100% Polish production.

Gear based on helical teeth, guaranteeing quiet and comfortable operation (-15dB) and high transmitted power (+50%*).

HYLMET gears thanks to a thick, solid casing (minimum thickness 7 mm) and, up to 7 bearings are ideal for heavy-duty applications.

The multiplier has standard mounting holes around the latch and two additional holes, thanks to which there is no need to install additional accessories such as a driver.

Multiplier power: 30 kW (guaranteed)

Gear ratio: 1: 3.0

input revolutions: 540

output revolutions: 1620

maximum input torque 530 Nm

maximum output torque 175 Nm

Possibility of installing PZ30-PTO series aluminum pumps designed for continuous operation with heavy load.

PTO socket: PTO standard 1.3/8' DIN9611 - 6 cutters

* compared to Chinese or 'Italian' gears with a ratio of 1:3.8, max 20 kW.

Technical data of the aluminum pump: Geometric volume: 43 cm3/rev

Efficiency: 68 l/min

Pressure: 200 bar

Speed range: 800 - 2500

Suction connection: open. Φ27 + 4xM10 / Φ50.8 - karo

Pressure connection: open. Φ19 + 4xM8 / Φ39.7 - karo

Advantages of NE series pumps Designed for continuous operation under heavy load.

Higher efficiency - the volumetric efficiency of the new generation pumps is approximately 2-5% higher than pumps of 'classic' design.

Fewer components - new pump design reduces the number of parts. This is possible thanks to the implementation of technology with much higher accuracy of both bodies and covers, but above all gears (teeth in the 6th accuracy class). Thanks to this, the pumps achieve higher durability with lower weight.

Smaller pump dimensions - the new generation pumps are shorter towards the wheel axles by about 15%. They maintain the same parameters as the 'classic' design.

You don't know which set to choose for yourself? Use the option: Ask the seller a question! Parameters of gear sets depending on the hydraulic pump: - pump volume 17 cm3/rev. - flow rate 27 liters/minute - nominal pressure 250 bar - power requirement 11.25 kW - pump volume 23 cm3/rev. - flow rate 37 liters/minute - nominal pressure 250 bar - power requirement 15.40 kW - pump volume 27 cm3/rev. - flow rate 43 liters/minute - nominal pressure 250 bar - power requirement 17.90 kW - pump volume 35 cm3/rev. - flow rate 56 liters/minute - nominal pressure 200 bar - power requirement 18.70 kW - pump volume 43 cm3/rev. - flow rate 68 liters/minute - nominal pressure 200 bar - power requirement 22.70 kW - pump volume 51 cm3/rev. - flow rate 81 liters/minute - nominal pressure 200 bar - power requirement 27.00kW - pump volume 61cm3/rev. - flow rate 100 liters/minute - nominal pressure 180 bar - power requirement 30.00 kW - pump volume 82 cm3/rev. - flow rate 130 liters/minute - nominal pressure 140 bar - power requirement 30.00 kW

A wide selection of pumps allows you to adjust the set to your needs and comfortable operation with higher efficiency and pressure than standard pumps.

Dimension A:

PZ30-PTO .NE-35 - 132.5 mm

PZ30-PTO.NE-43 - 137.5 mm

PZ30-PTO.NE-51 - 143.5 mm
