Set of reversing camera 2 mpx monitor AHD 10

Set of reversing camera 2 Mpx + AHD monitor 10' 12V/24V 15m 4-PIN

AHD technology

The AHD (Analog High Definition) system is a completely new technology that combines the advantages of analog transmission with IP quality transmission - HD 720p and FullHD 1080p. Image with twice the resolution of standard reversing cameras.

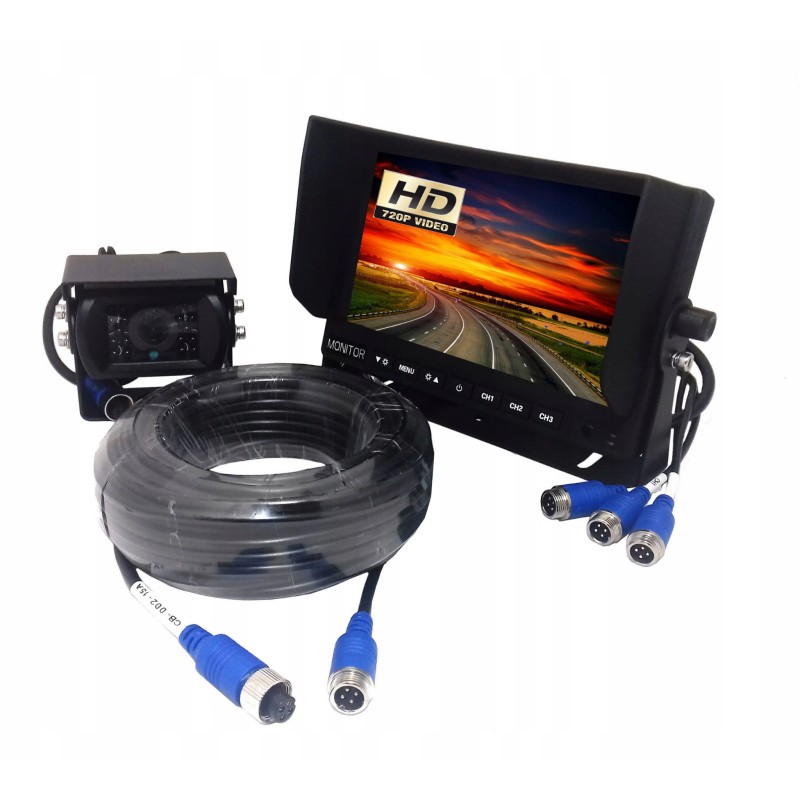

The set includes:

Professional reversing camera with SONY CMOS 1/3' 2Mpx sensor (1080P) with 18 IR infrared illuminator

10' AHD 1024 x 600 color car monitor with input for 3 cameras

15-meter video cable with 4-PIN power supply

POSSIBILITY OF POWER SUPPLY WITH 12V OR 24V

18 high-performance IR diodes enable good vision of the camera even in complete darkness. High image quality, excellent colors and detail reproduction are ensured by a 2 megapixel SONY sensor. The camera has a handle that can be adjusted in one plane and an adjustable visor that protects the lens against precipitation and prevents the camera from being blinded by strong sunlight.

Technical data of the camera:

Sensor: SONY 1080P

Video resolution: PAL/NTSC: AHD-M 1280（H） ×1080（V）

Minimum illumination: 0.01Lux with IR

Shutter: 1/50 (1/60) sec to 1/10,000 sec

Lens: 3.6mm

Video output: AHD 4-PIN

Infrared: IR:18PCS LEDS, range 5-15m

Power consumption: <.5W

Operating temperature and humidity: -20 ℃ ~ 60 ℃, humidity below 90% (no condensation)

Tightness: IP68

High-quality monitor (HEAVY DUTY series with enhanced resistance) with AHD 1042 x 600 matrix supporting up to 3 cameras in 720P@25/30, 720P@50/60, 1080P@25/30 technology. Manual (using the remote control or touch buttons on the housing) or automatic switching of cameras after applying a signal to the control cables. The sun visor ensures good vision in unfavorable lighting conditions in the cabin.

Technical data of the monitor:

10.1-inch LCD matrix

1024 (RGB) x 600 resolution

3 video inputs 4-PIN 720P@25/30, 720P@50/60 , 1080P@25/30

auto power-on function

functional simple MENU

systems: PAL/NTSC AHD

power supply: DC 12V/24V

dimensions with handle: width 290mm x height 190mm x thickness. 70mm

black color

The device is equipped with twisted metal 4-PIN connectors enabling hermetic connection of car cameras.

The set includes a special 15-meter 4-PIN cable of increased quality especially for the AHD class.
