Connections to a 4-section 80l hydraulic distributor

SET OF CONNECTIONS FOR A 4-SECTION HYDRAULIC DIVIDER 80L/min SKRAW-MET CODE:[8223]Application:

Hydraulic connections are perfect for hydraulically powered machines and devices. They can be used in agriculture, horticulture, forestry and construction.

They allow the connection of a hydraulic distributor with pipes.

Technical data:

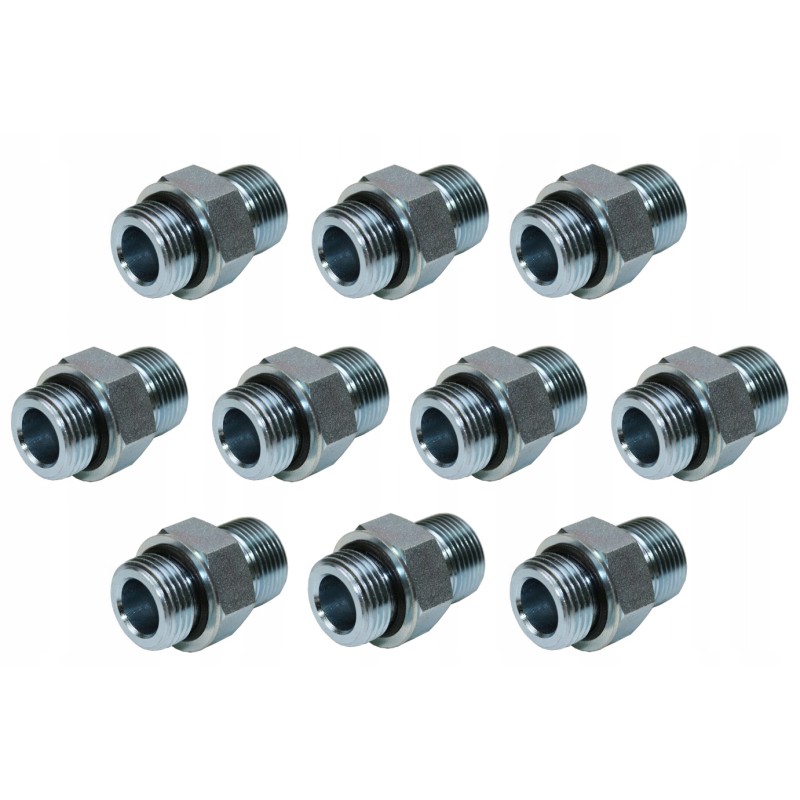

1 pc. refers to a set of 10 connections. The set includes a power supply, return and 8 actuator connections. Each connection has a rubber seal, so there is no need to add gaskets.

Threads:

POWER SUPPLY:

Thread on the distributor side, inch BSP: 3/4'

Thread on the hydraulic conduit side: M22x1.5

RETURN:

Thread on the distributor side, inch BSP: 3/4'

Thread on the hydraulic line side: M22x1.5

FOR CYLINDERS:

Thread on the distributor side, inch BSP: 1/2'

Thread on the hydraulic line side: M22x1.5
