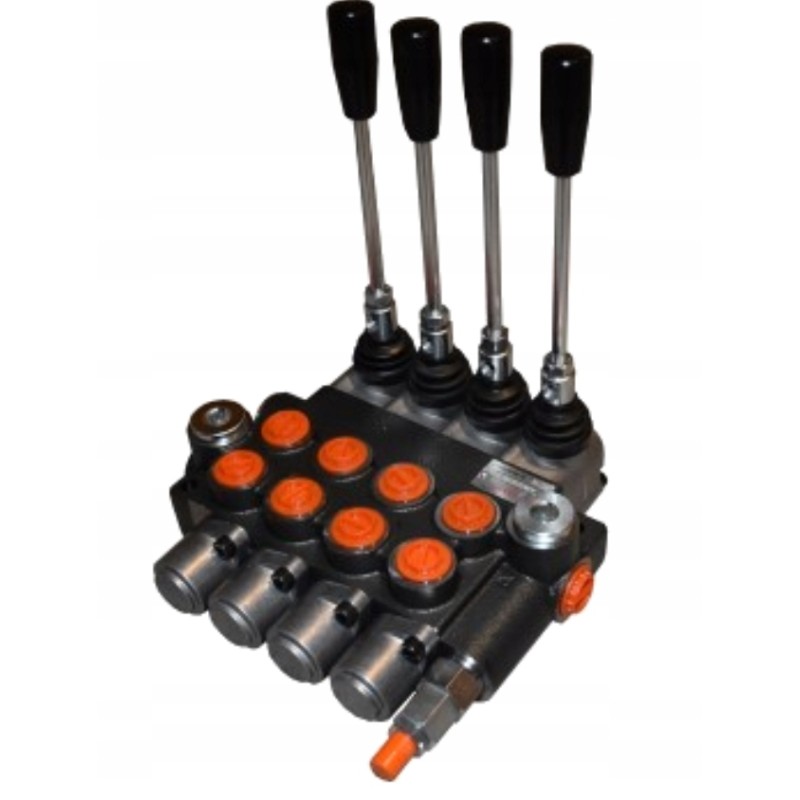

4-section hydraulic distributor, 80l

4-section hydraulic distributor with an oil flow of 80L/min [0237]

A high-quality, universal distributor, used in various types of machines such as: Cyklops, Tury, Loaders, Plows, Forklifts and similar devices.

The distributor is perfect for machines and devices hydraulically powered.

Can be used in agriculture, horticulture, forestry and construction.

It is adapted to work in: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others .

The distributor has a safety valve.

Technical specifications: Oil flow 80 L/min,

Max pressure 300 Bar,

Operating temperature from -40'C to +60'C,

Hydraulic oil based on mineral oil

Connections (Internal threads in the body): Feed 1/2',

Return 3/4',

Actuators 1/2',

Three-position lever: Vertical lever position - Actuator piston is standing,

Lever position forward - Actuator piston extends,

Lever position backwards - Actuator piston retracts
