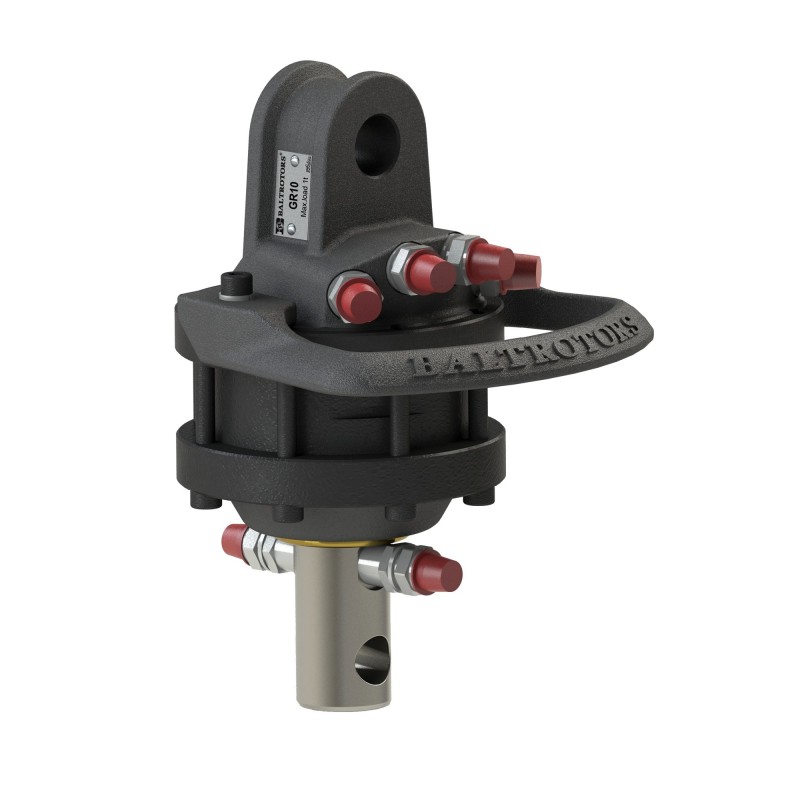

Hydraulic rotator gr10 1 4 1000kg baltrotors

HYDRAULIC ROTATOR GR10 ROTATABLE Production:

Original product of the Baltrotors brand, symbol: GR10, 1.51.00.001

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Original rotator from a renowned and appreciated all over the world the Latvian company Baltrotors, a leader in the production of the strongest and least failure-prone rotators. Very versatile applications: Forestry trailers, self-loading grabs, bulk material loaders, HDS cranes, boom mowers, scrap loaders and others.

The rotator can be successfully used as a powerful drive for drilling rigs, it has two independent channels supplying oil to the turntable, thanks to this, an unlimited angle of rotation of the rotator tip is possible without the risk of breaking the hydraulic lines.

Technical data:

Maximum static load (without rotation): 1000kg

Maximum dynamic load (with rotation): 500kg

Torque (25MPa) : 350Nm

Recommended flow: 10L/min

Total weight: 12kg

Threads on connection ports: 1/4'

Maximum pressure when rotating: 25MPa

Maximum pressure when opening the gripper: 20MPa

Maximum pressure when opening the gripper: 30MPa
