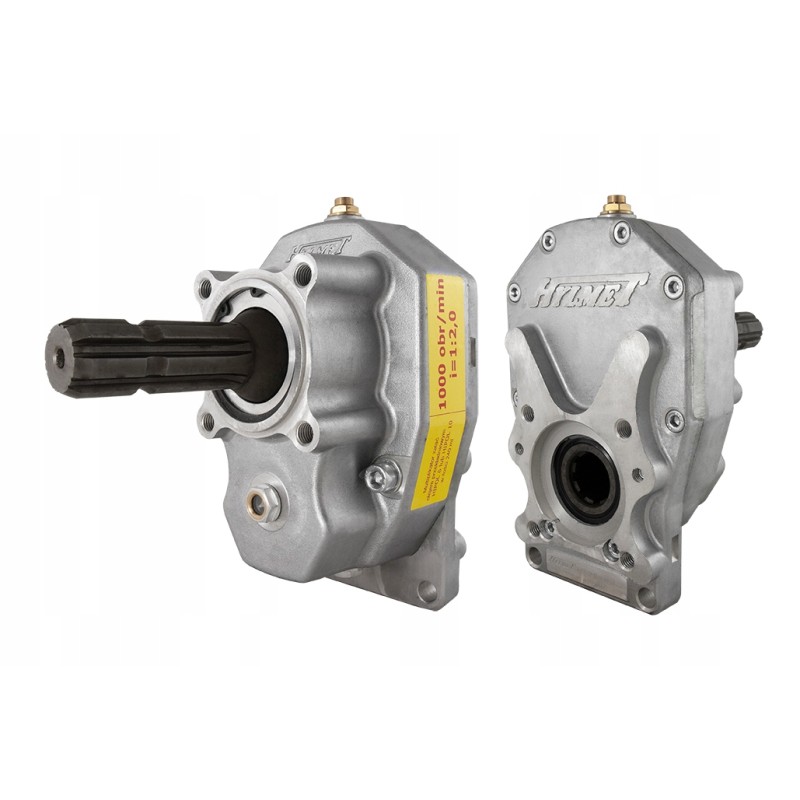

Durable ml52 transmission for a forest trailer

MULTIPLICATOR (replacement of ML52) with a power of 35kW HYLMET FOR GEAR / PISTON PUMPS WITH SHAFT ISOPZ30-PTO.XISOWZ.NE 1:2 Durable, failure-free transmission that you can rely on for years. Product 100% Polish production.

Transmission based on helical teeth, guaranteeing quiet and comfortable operation (-15dB*) and high transmitted power (+75%*).

Multipliers of this type are used in hydraulic systems intended for agriculture, forestry and small orchard tractors (compact dimensions). They are ideal wherever the hydraulic capacity is too low.

HYLMET gears, thanks to their thick, solid housing (minimum thickness 7 mm) and as many as 7 bearings, are ideal for heavy-duty applications.

The multiplier has standard mounting holes around the shaft and two additional holes holes thanks to which there is no need to install additional accessories such as a driver.

.

* compared to Chinese or 'Italian' gears with a ratio of 1:3.8 max 20 kW.

FREE!! FREE gear oil!! Technical data: Multiplier power: 35 kW (guaranteed)

Gear ratio: 1:2.0

input revolutions: 540

output revolutions: 1080

max input torque 620 Nm

max output torque 310 Nm

Possibility of mounting piston/gear pumps with ISO shaft:

screw spacing 80x80 mm

Pump flange diameter:

80 mm

PTO shaft: 1' 3/8 DIN9611 - 6 cutters

Compact dimensions (15x25.7 cm) guarantee installation in any tractor type.

The PZ30-PTO gearbox is equivalent to the ML52 gearbox.

Comparison of both gearboxes with a 43cm3/rev pump

The HYLMET gearbox can operate at a pressure of 450 bar

The imported gearbox can operate at a pressure of 140 bar

Comparing operation at a pressure of 400 bar

efficiency 52 l/min will be obtained with the HYLMET gearbox

performance of 30 l/min will be obtained with the imported gearbox
