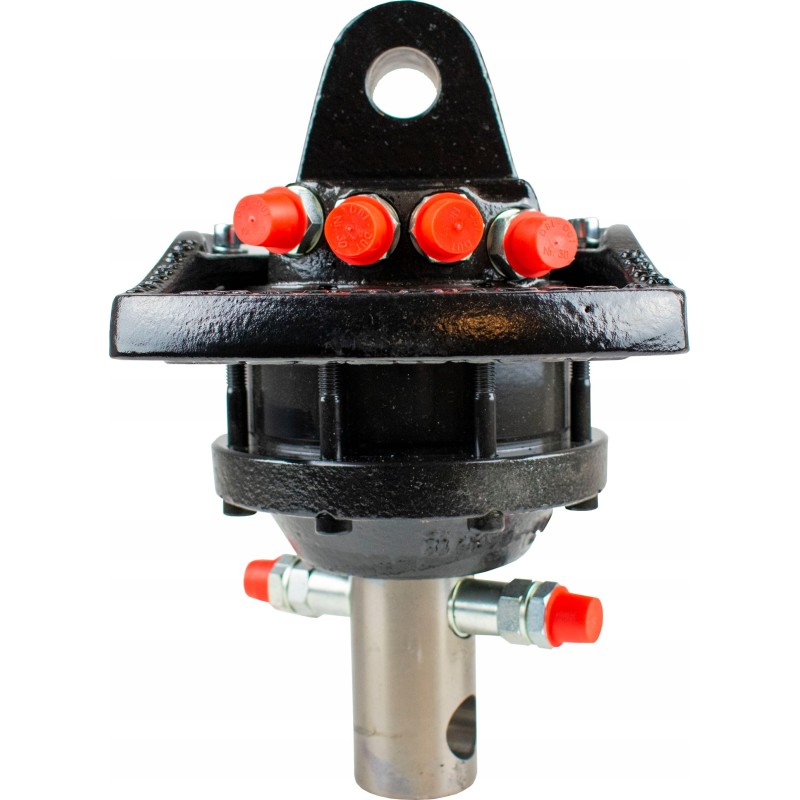

Rotator Baltrotors GR30 3t HDS Fassi rotator

BALTROTORS GR30 ROTATOR 3 TONS The best value for money! The GR30 model rotator from the renowned Baltrotors brand has a maximum static load capacity of 3 tons and unlimited rotation. The swivel head has standardized dimensions that fit most cranes and accessories. Baltrotors products enjoy an exceptionally good reputation on the market due to their failure-free operation even when used in difficult working conditions. Rotator designed to work with a truck crane and accessories such as a timber grab, bucket or pallet fork.

TECHNICAL SPECIFICATIONRotation: unlimited

Maximum axial lifting capacity (static): 30 kN

Maximum axial lifting capacity (dynamic): 15 kN

Torque ( at 25 MPa): 1000 Nm

Recommended oil flow: 20 l/min

Own weight: 15 kg

Upper mounting (for connector): width - 60 mm, hole diameter - ø 25 mm

Lower mounting (accessory): pin diameter - ø 49.5 mm, hole diameter - ø 25 mm

MAXIMUM OPERATING PRESSURERotator <,- R ->,: maximum 25 MPa (G 3/8 inch)

Gripper/attachment opening <,- G ->,: maximum 20 MPa (G 3/8 inch)

Gripper/accessory closure ->, G <,-: maximum 30 MPa (G 3/8 inch)

TECHNICAL DRAWINGLegend R - rotator

O - gripper opening

Z - gripper closure
