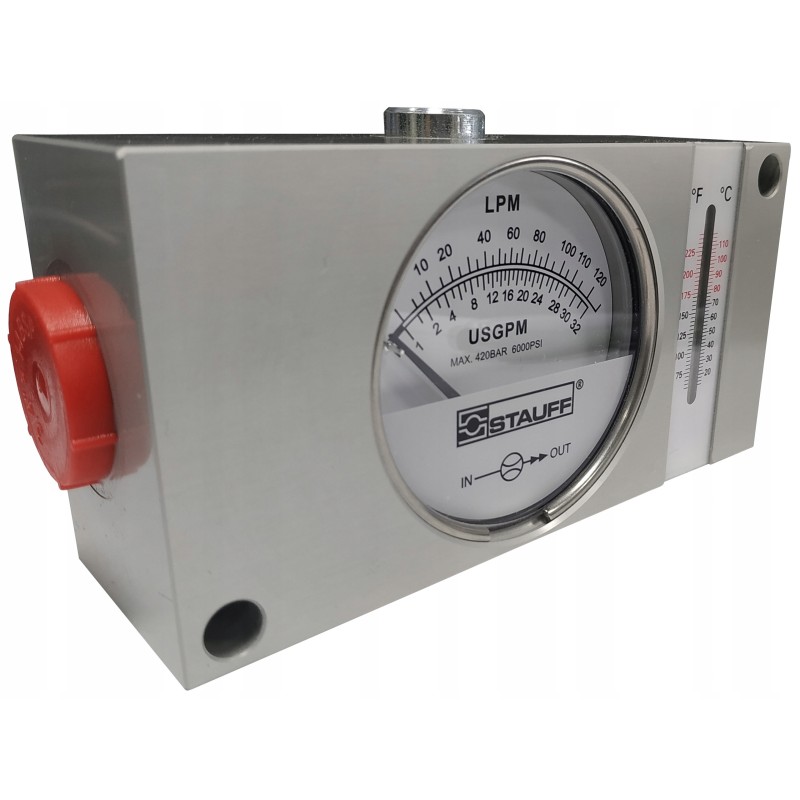

Flowmeter 5 120l 3 4 with thermometer

FLOW METER 5 - 120L 3/4'' WITH THERMOMETER SKRAW-MET CODE: [1921] Used to measure the flow, pressure and temperature of fluids in mobile and industrial hydraulics as well as to control the working pressure.

SDM flow indicators have a sharp-edged opening and a conical dispensing piston that moves in proportion to changes in flow against a spring.

In the no-flow state, the piston closes the hole and the indicator shows zero. As the flow and pressure difference increase, the piston moves relative to the calibrated spring.

The movement of the piston is directly proportional to the flow rate and is magnetically coupled to the rotary pointer. During this function, the sharp-edged orifice minimizes the effect of viscosity.

Features: suitable for mineral oil, HFC fluids and water

designed for installation on a production line

mechanical device (off-line)

flow indication in L/min and GPM

thread for connection to a pressure gauge on the top

Flow is shown on a calibrated scale in l/min and gal/min.

Symbol: SDM-750-A-120-T Technical specifications: Length: 146 mm

Height: 75 mm

Width: 50 mm

Thread for pressure gauge: G1/4'

Inlet thread ( on the Left): G3/4'

Exit thread (on the Right): G3/4'

Max. working pressure: 420 bar

Temperature measurement range: 10°C .... 80°C
