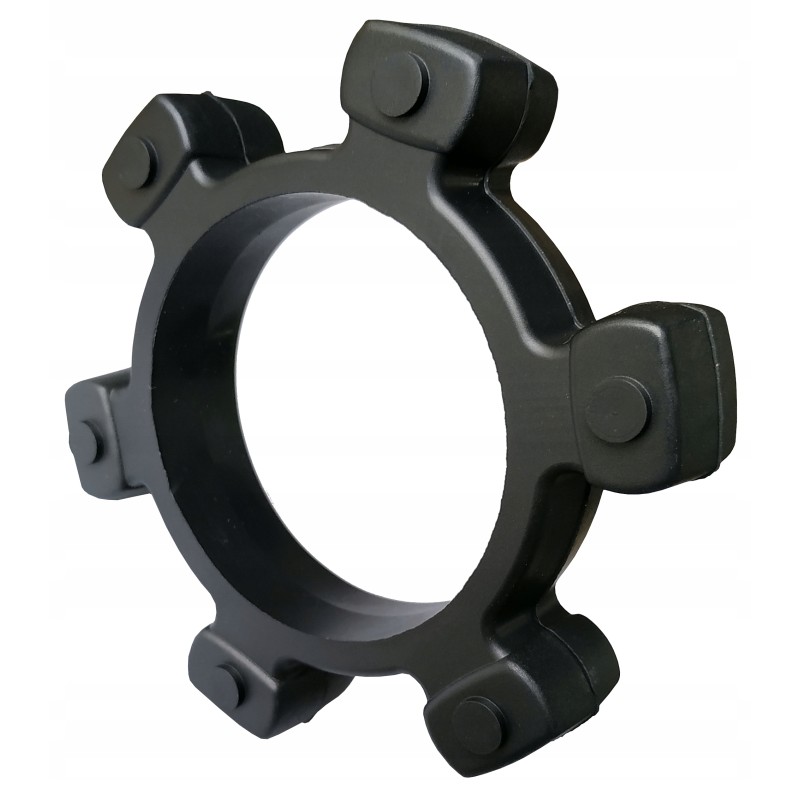

Flexible rubber claw clutch g132 5 5 9 kw

FLEXIBLE RUBBER FOR WHEEL CLUTCH FOR G132 ENGINES 5.5 - 9 kW CODE SKRAW-MET:[1779]Durable elastic insert used to reduce and dampen vibrations during operation of hydraulic systems, thanks to the flexible connecting material: polyurethane - resistant to cracking and crushing.

This rubber is one of the elements in the dog clutch that allows you to connect a GROUP 2 or 3 hydraulic pump with a 1- or 3-phase electric motor with a B35 type body. Rubber diameter: 76mm

Inner hole diameter: 40mm

Outer hole diameter: 54mm

Maximum height: 21mm

Application: Used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Claw clutch mounted internally. bell connector, is designed to transfer the rotational force from the engine shaft to the pump shaft. It is mounted and stabilized inside the bell connector.

Suitable for clutches compatible with electric motors of size G132 such as:

GR2 G132 5.5 - 9 kW W:38 [1178]

Symbol: 0738-S07-072UNGR3 G132 5.5 - 9 kW W:38 [1198]

Reference: 0738-S07-073UN
