Flexible rubber claw clutch g100 112 2 2 4 kw

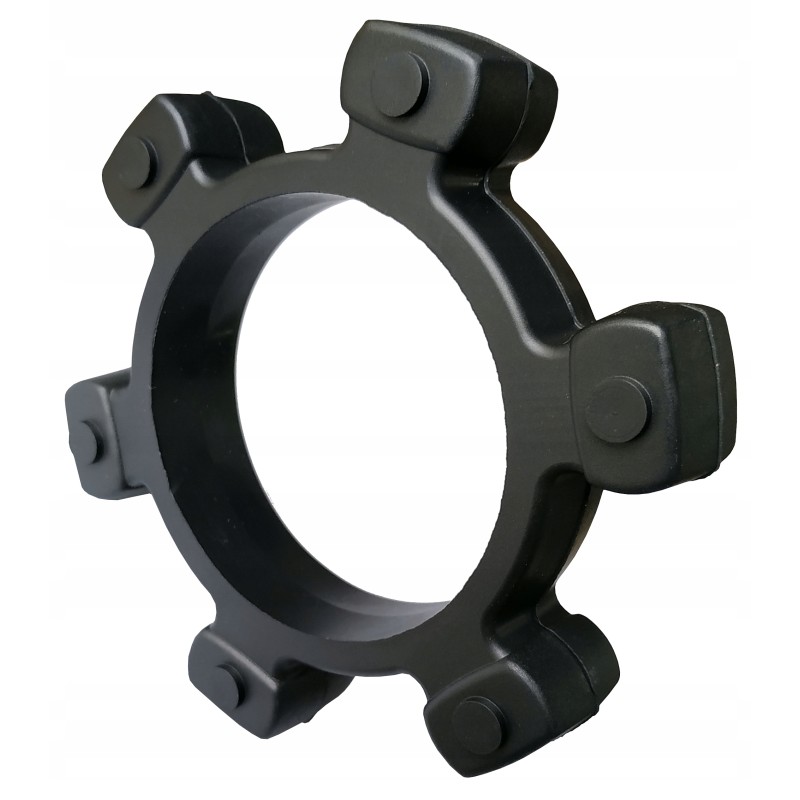

FLEXIBLE RUBBER FOR WHEEL CLUTCH FOR G100/112 ENGINES 2.2 - 4 kW [1778]

Durable elastic insert used to reduce and dampen vibrations during operation of hydraulic systems, thanks to the flexible connecting material: polyurethane - resistant to cracking and crushing.

This rubber is one of the elements located in the dog clutch, which allows you to connect a GROUP 2 or 3 hydraulic pump with a 1- or 3-phase electric motor with a B35 type body.

Rubber diameter: 55 mm

Inner hole diameter: 30 mm

Outer hole diameter: 39 mm

Height maximum: 18mm

Application: Used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Claw clutch mounted internally. bell connector, is designed to transfer the rotational force from the engine shaft to the pump shaft. It is mounted and stabilized inside the bell connector.

Fits clutches working with electric motors of size G100 and G112 such as:

GR2 G100-112 2.2-4kW W:28 [1177]

Symbol: 0528-S05-052UNGR3 G100- 112 2.2-4kW W:28 [1196]

Symbol: 0528-S05-053UN
