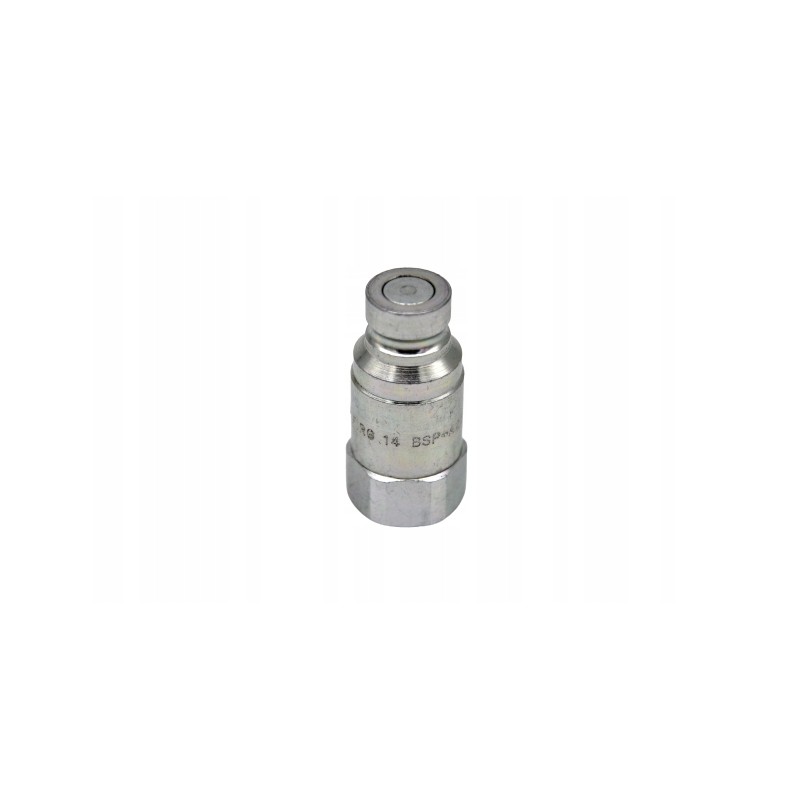

Flat face quick connector 3 4 bsp m firg13 stucchi

ORIGINAL ITALIAN Flat-Face dry shut-off quick connector M.FIRG13 3/4' BSP plugPressure 250 bar !!!- Interchange ISO 16028

- Type Flat Face

- Connection under pressure not allowed

- Material / Processing Carbon steel, Cr3

- Push connection system

- Nitrile NBR seal

- operating pressure Plug up to 250 bar

- Locking mechanism, locking ball, safety lock

- Temperature -20°C / +100°C

A hydraulic quick connector is an element of hydraulic system equipment that enables quick and safe connection of two parts of the system, without the need to use tools. Hydraulic quick couplings may have different designs and shapes, but they all fulfill similar tasks, such as enabling easy replacement of hydraulic elements or carrying out quick repairs.

The presented dry cut-off FIRG quick coupling from the renowned STUCCHI brand is a special type of connection that is used in applications where it is required tightness of the connection and minimal loss of fluid. The above hydraulic quick couplings are designed to prevent leakage of hydraulic fluid when disconnecting two connected components, thus maintaining the cleanliness and efficiency of the hydraulic system.

FIRG is a specific series of STUCCHI brand - dry shut-off hydraulic quick couplings, was introduced to the market in 1983 and since Since then, it has been very popular in the hydraulic industry. FIRG series elements are characterized not only by high durability and reliability, but also by compliance with international standards such as ISO 16028 and NFPA T3.20.15 (HTMA). This series is most often chosen by manufacturers of hydraulic equipment in applications where reliability and efficiency are crucial and minimal fluid loss is unacceptable.
