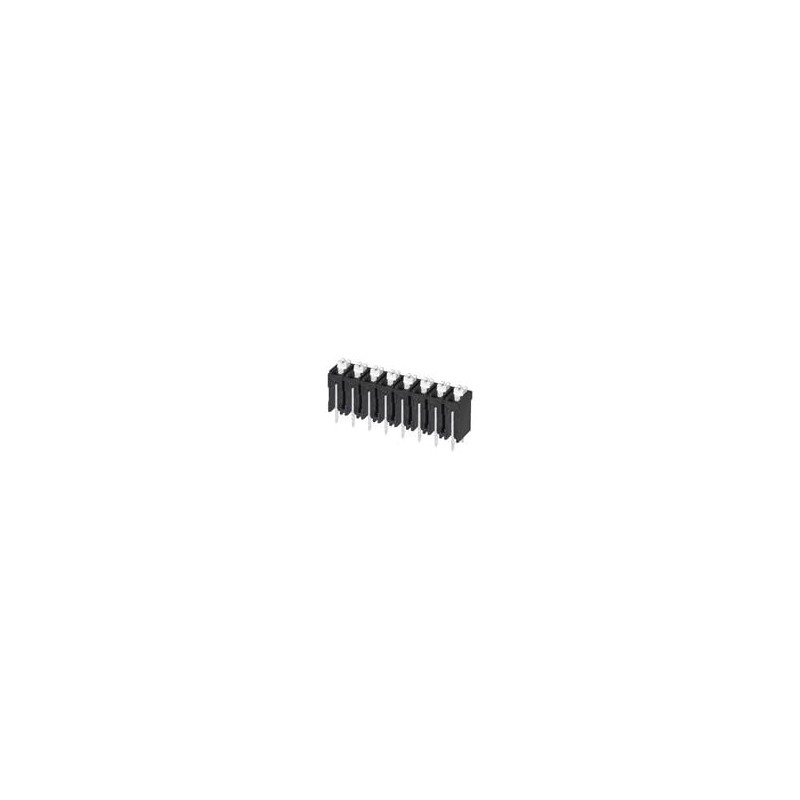

    10 pcs : TBLH10V-500-08BK - Fixed Terminal Blocks Terminal block, screwless, High Temp, 5.00, Vertical, 8, Black w Gray Button
    • 10 pcs : TBLH10V-500-08BK - Fixed Terminal Blocks Terminal block, screwless, High Temp, 5.00, Vertical, 8, Black w Gray Button

    10 pcs : TBLH10V-500-08BK - Fixed Terminal Blocks Terminal block, screwless, High Temp, 5.00, Vertical, 8, Black w Gray Button

    10(electronicparts)490TBLH10V50008BK
    10 pcs : TBLH10V-500-08BK - Fixed Terminal Blocks Terminal block, screwless, High Temp, 5.00, Vertical, 8, Black w Gray Button
    £62.50
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Screwless Terminal Blocks CUI Devices Screwless Terminal Block connectors are available in various orientations, pitches, and housing styles. These screwless terminal blocks feature 1 to 24 pole counts, a pitch range of 2.54mm to 15mm, and 500MΩ insulation. The mounting-angle orientation options include horizontal, vertical, and 45°. These CUI Devices screwless connectors are both UL and CE safety certified and operate within a -40°C to +130°C temperature range.
    Product Details
    CUI Devices
    10(electronicparts)490TBLH10V50008BK
    TBLH10V-500-08BK
    10 Items

    Data sheet

    Manufacturer
    CUI Devices
    Current rating
    10 A
    Contact material
    copper alloy
    Contact plating
    Tin
    Number of positions
    8 Position
    Voltage Rating
    300 V
    Mounting Style
    PCB Mount
    Housing Material
    Liquid Crystal Polymer (LCP)
    Product Type
    Fixed Terminal Blocks
    Pitch
    5 mm
    Termination Style
    Through Hole
    Product Category
    Fixed Terminal Blocks
    Flammability Rating
    UL 94 V-0
    Packaging
    Tray
    Brand
    CUI Devices
    Product
    Fixed Terminal Blocks
    Factory Pack Quantity Factory Pack Quantity
    320
    Subcategory
    Terminal Blocks
    Wire Gauge Min
    24 AWG
    Wire Gauge Max
    16 AWG
    Mounting Angle
    Vertical
