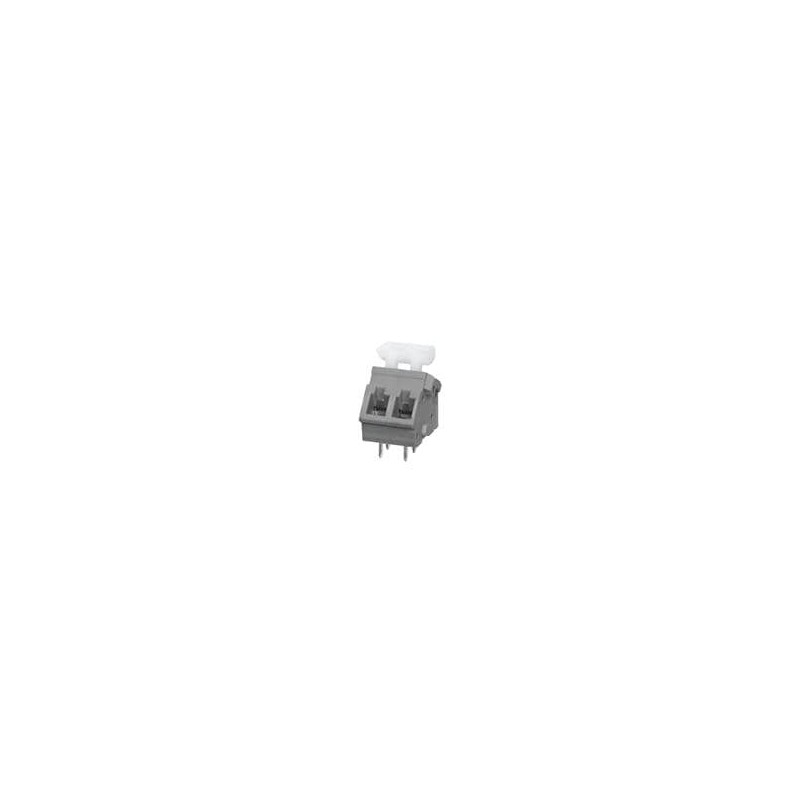

    1 pcs : TBL005A-500-02GY-2WT - Fixed Terminal Blocks Terminal block, screwless, 5.00, 45, 2, Gray w White Button
    • 1 pcs : TBL005A-500-02GY-2WT - Fixed Terminal Blocks Terminal block, screwless, 5.00, 45, 2, Gray w White Button

    1 pcs : TBL005A-500-02GY-2WT - Fixed Terminal Blocks Terminal block, screwless, 5.00, 45, 2, Gray w White Button

    electronicparts-UK/M/490-TBL05A50002GY2WT
    £8.46
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Screwless Terminal Blocks CUI Devices Screwless Terminal Block connectors are available in various orientations, pitches, and housing styles. These screwless terminal blocks feature 1 to 24 pole counts, a pitch range of 2.54mm to 15mm, and 500MΩ insulation. The mounting-angle orientation options include horizontal, vertical, and 45°. These CUI Devices screwless connectors are both UL and CE safety certified and operate within a -40°C to +130°C temperature range.
    Product Details
    CUI Devices
    electronicparts-UK/M/490-TBL05A50002GY2WT
    TBL005A-500-02GY-2WT
    10 Items

    Data sheet

    Manufacturer
    CUI Devices
    Current rating
    15 A
    Contact material
    copper alloy
    Contact plating
    Tin
    Number of positions
    2 Position
    Voltage Rating
    300 V
    Mounting Style
    PCB Mount
    Housing Material
    Polyamide (PA)
    Product Type
    Fixed Terminal Blocks
    Pitch
    5 mm
    Termination Style
    Through Hole
    Product Category
    Fixed Terminal Blocks
    Flammability Rating
    UL 94 V-0
    Packaging
    Tray
    Brand
    CUI Devices
    Product
    Fixed Terminal Blocks
    Factory Pack Quantity Factory Pack Quantity
    810
    Subcategory
    Terminal Blocks
    Unit Weight
    3.419 g
    Wire Gauge Min
    26 AWG
    Wire Gauge Max
    14 AWG
    Mounting Angle
    45 deg
