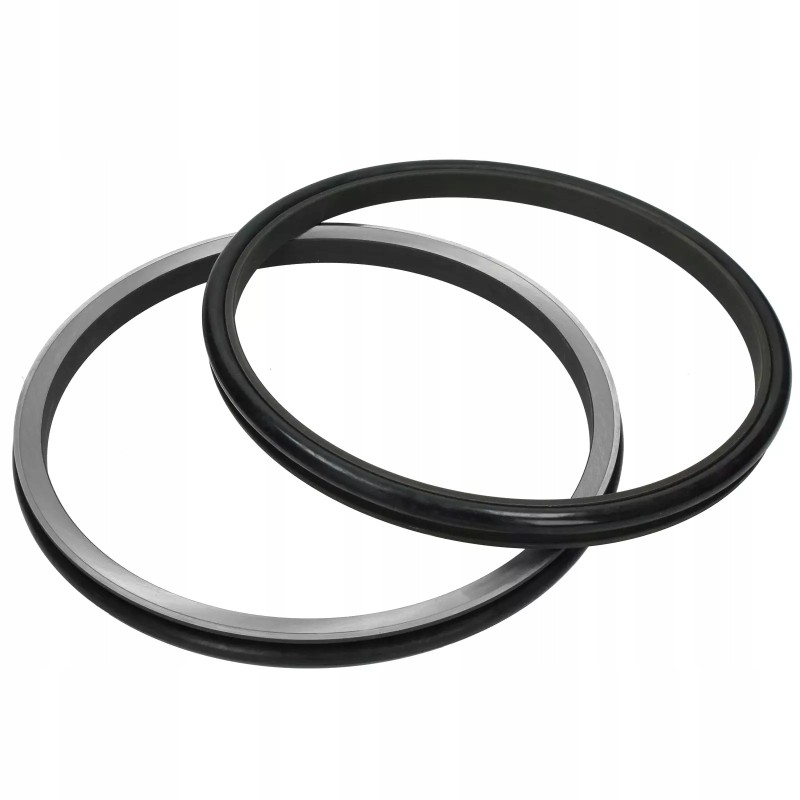

Final drive seal jcb js130 js145 js160 js180

JCB hub reduction seal The high-quality seal is a complete set that prevents oil leaks at the junction of the hub reduction flange and the hydromotor. The set consists of two metal rings and rubber O-rings.

The metal ring together with the outer bearing race form the so-called a sliding seal that allows the component to rotate and be tight. The rubber O-ring prevents oil leaks on the housing side and acts as a shock absorber to prevent the ring from being damaged during stress.

Technical data: Seal dimensions: 275 x 310 x 40 mm (internal dimension/external dimension/height)

Excavator weight: 13-28 t

Catalog number: 05/903811

Fits models: JS130, JS145, JS160, JS180, JS200, JS220, JS240, JS260

Ring material: forged steel Ring hardness: 60-65 HRC

O-ring material: NBR75

Abrasion resistance: high

Rust resistance: medium Seal functions: Prevents oil leakage from the reduction gear Eliminates oblique stresses Reduces friction in the final drive Extends the service life of bearings (Life-Time). By choosing our products:
