JCB 8030 8025 final drive seal set

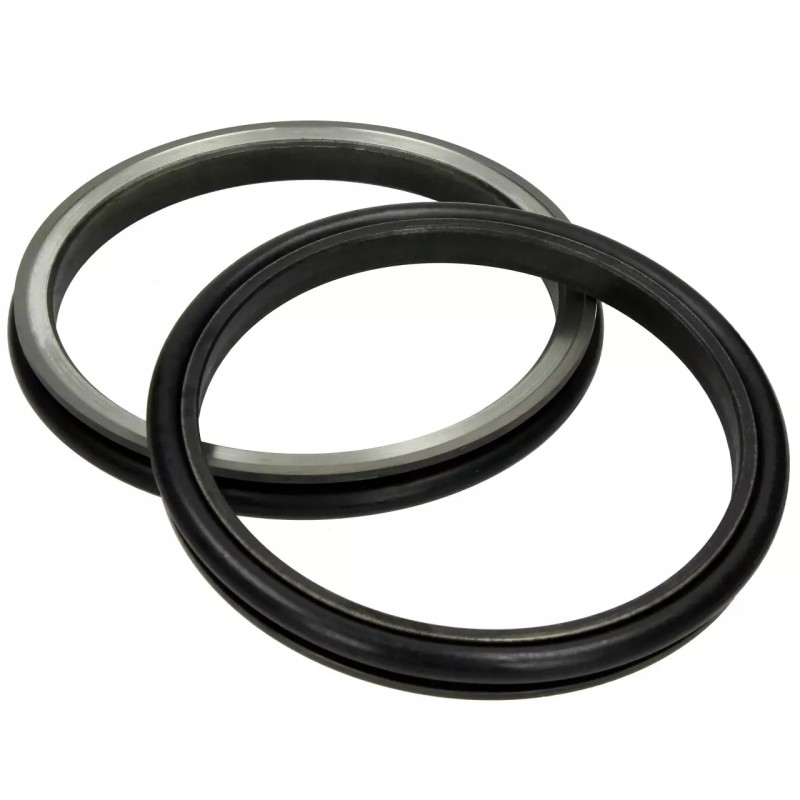

JCB 8030 hub reduction gear seal set 8025 JCB 8030 hub gear sealing The high-quality seal is a complete set that prevents oil leaks at the junction of the hub reduction gear flange and the hydromotor. The set consists of two metal rings and two rubber O-rings. The metal ring together with the outer bearing race form the so-called a sliding seal that allows the component to rotate and be tight. Rubber O-ring prevents oil leakage on the housing side and acts as a shock absorber to prevent the ring from being damaged during stress

Seal functions: Prevents oil leakage from the reduction gear Eliminates oblique stresses Reduces friction in the final drive Extends the service life of bearings (Life-Time). Technical data: Seal dimensions: 150 x 171 x 32 mm (internal dimension/external dimension/height)

Excavator weight: 2.5-3.5 tons Catalog number: 333/L1474

Fits models: 8025, 8030<,b/>,

Ring material: forged steel Ring hardness: 60-65 HRC

O-ring material: NBR75

Abrasion resistance: high

Rust resistance: medium
