Final drive seal jcb 801 6 801 5 801 4 801

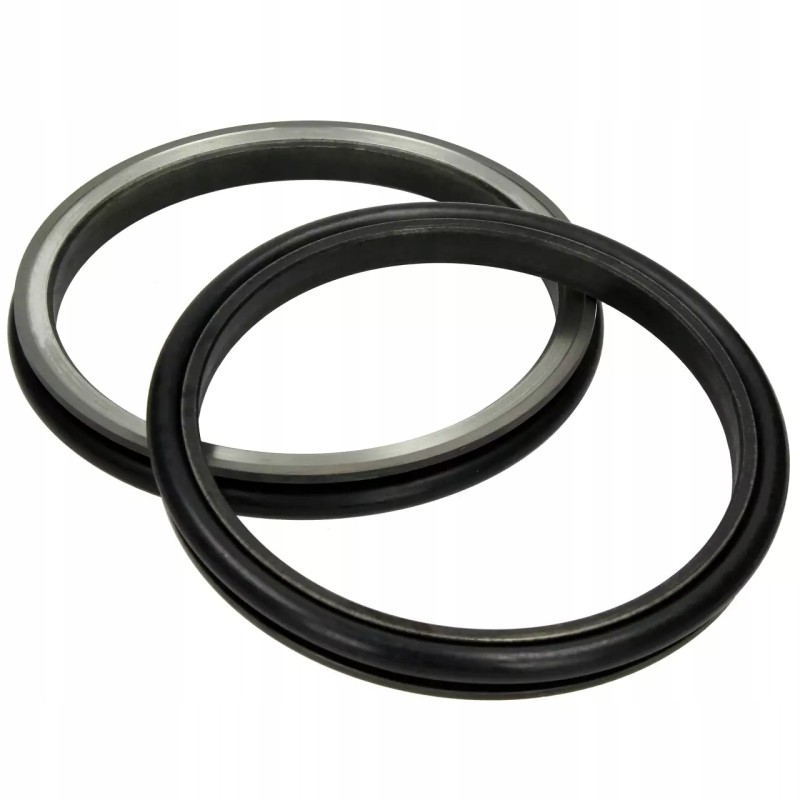

JCB hub reduction seal The high-quality seal is a complete set that prevents oil leaks at the junction of the hub reduction flange and the hydromotor. The set consists of two metal rings and two rubber O-rings.

The metal ring together with the outer bearing race form the so-called a sliding seal that allows the component to rotate and be tight. The rubber O-ring prevents oil leaks on the housing side and acts as a shock absorber to prevent the ring from being damaged during stress.

Technical data: Seal dimensions: 150 x 171 x 32 mm (internal dimension/external dimension/height)

Excavator weight: 2.5-3.5 tons Catalog number: 20/902520

Fits models: 801.6, 801.5, 801.4, 801

Ring material: forged steel Ring hardness: 60-65 HRC

O-ring material: NBR75

Abrasion resistance: high

Rust resistance: medium Seal functions: Prevents oil leakage from the reduction gear Eliminates oblique stresses Reduces friction in the final drive Extends the service life of bearings (Life-Time). By choosing our products:

you can be sure that the excavator will not let you down when you need it most you don't have to worry whether the purchased part will fit - our professional team will help you choose you can quickly and easily replace damaged elements with new ones
