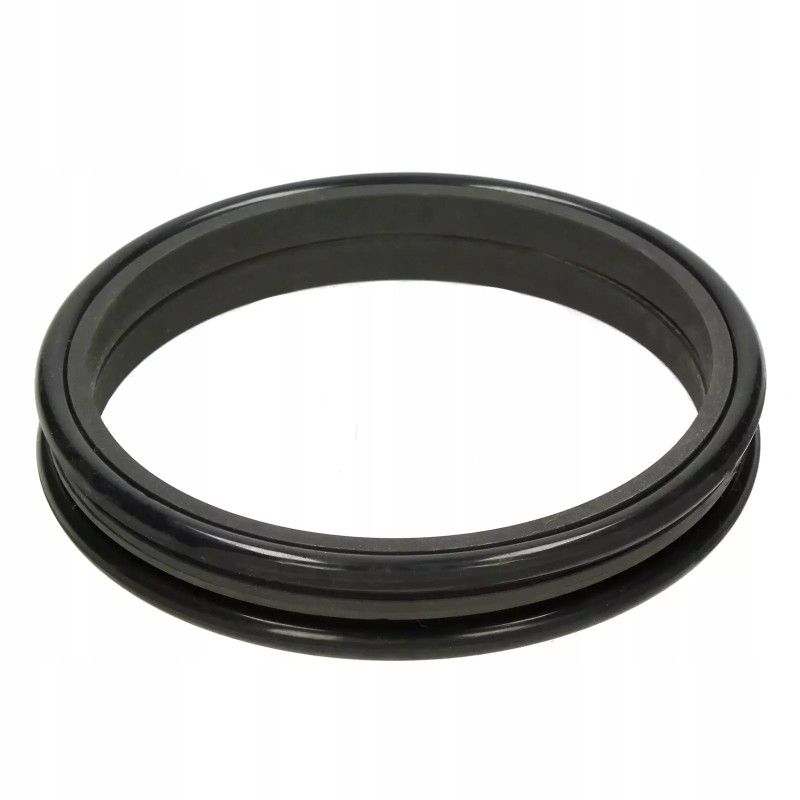

Final drive seal for Volvo EC13 EC15 EC15B EC20

VOLVO hub reduction seal High-quality seal is a complete set that prevents oil leaks at the junction of the hub reduction flange and the hydromotor. The set consists of two metal rings and rubber O-rings.

The metal ring together with the outer bearing race form the so-called a sliding seal that allows the component to rotate and be tight. The rubber O-ring prevents oil leaks on the housing side and acts as a shock absorber to prevent the ring from being damaged during stress

Seal functions: Prevents oil leakage from the reduction gear Eliminates oblique stresses Reduces friction in the final drive Extends the service life of bearings (Life-Time). Technical data: Seal dimensions: 111 x 128 x 22 mm (internal dimension/external dimension/height)

Excavator weight: 1.5-2 t

Catalog number: PJ7415922

Fits the model: EC13, EC15, EC15B, EC20, EC20B

Ring material: forged steel Ring hardness: 60-65 HRC

O-ring material: NBR75

Abrasion resistance: high

Rust resistance: medium By choosing our products:

you can be sure that the excavator will not let you down when you need it most you don't have to worry whether the purchased part will fit - our professional team will help you choose you can quickly and easily replace damaged elements with new ones
