Final drive seal cat 320 322 323 324 325 329

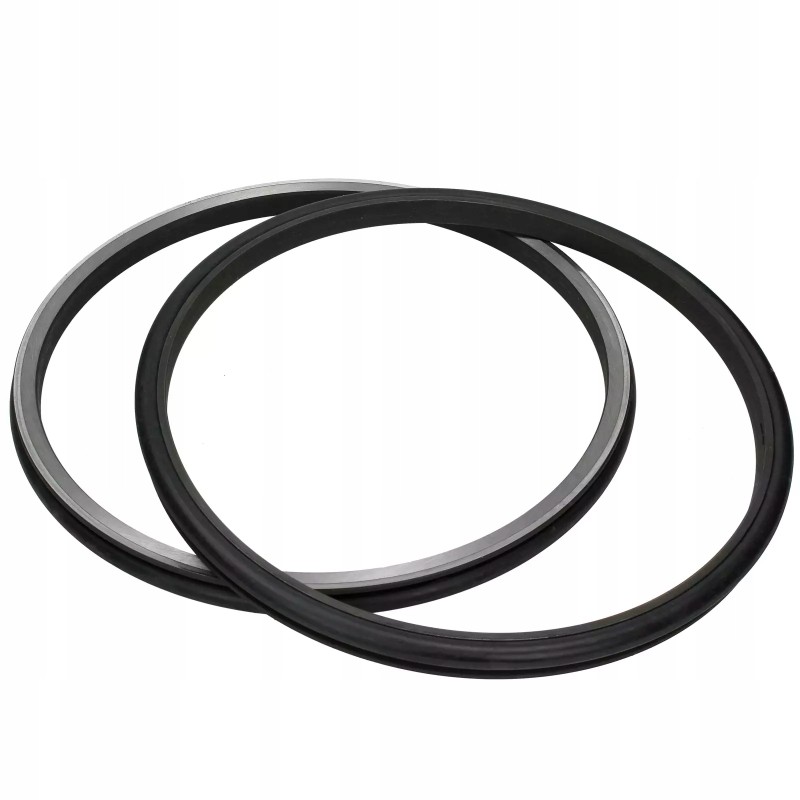

CAT hub reduction seal The high-quality seal is a complete set that prevents oil leaks at the junction of the hub reduction flange and the hydromotor. The set consists of two metal rings and rubber O-rings.

The metal ring together with the outer bearing race form the so-called a sliding seal that allows the component to rotate and be tight. The rubber O-ring prevents oil leaks on the housing side and acts as a shock absorber to prevent the ring from being damaged during stress

Seal functions: Prevents oil leakage from the reduction gear Eliminates oblique stresses Reduces friction in the final drive Extends the service life of bearings (Life-Time). Technical data: Seal dimensions: 327.5 x 346 x 38 mm (internal dimension/external dimension/height)

Excavator weight: 30-35 t

Catalog number: 207-1571

Fits models: 320C, 320C FM, 320D, 320D FM, 320D FM RR, 322B L, 322C, 322C FM, 323D LN, 323D SA, 323E L, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN , 325B L, 325C, 325C FM, 325D, 325D L, 325D MH, 326D L, 329D, 329D L, 329D LN, 329E, 329E L, 329E LN

Ring material: forged steel Ring hardness: 60-65 HRC

O-ring material: NBR75

Abrasion resistance: high

Rust resistance: medium By choosing our products:

you can be sure that the excavator will not let you down when you need it most you don't have to worry whether the purchased part will fit - our professional team will help you choose you can quickly and easily replace damaged elements with new ones
