Case cx210b cx160b hub reduction seal kit

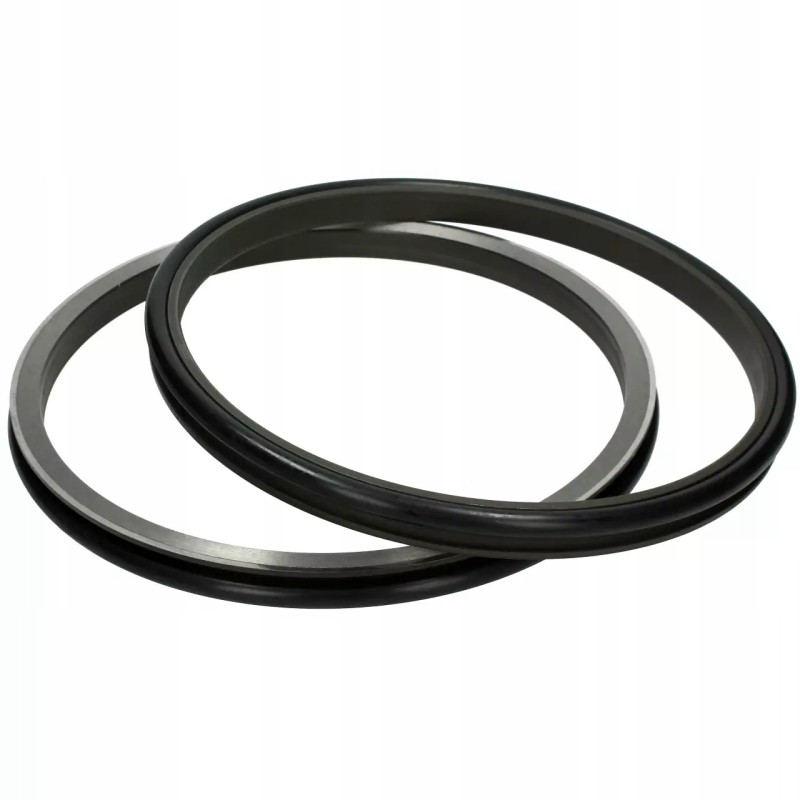

CASE CX210B CX160B hub reduction gear seal setCASE CX210B hub reduction seal The high-quality seal is a complete set that prevents oil leaks at the junction of the hub reduction flange and the hydromotor. The set consists of two metal rings and rubber O-rings. The metal ring together with the outer bearing race form the so-called a sliding seal that allows the component to rotate and be tight. Rubber O-ring prevents oil leakage on the housing side and acts as a shock absorber to prevent the ring from being damaged during stress

Seal functions: Prevents oil leakage from the reduction gear Eliminates oblique stresses Reduces friction in the final drive Extends the service life of bearings (Life-Time). Technical data: Seal dimensions: 298 x 328 x 40 mm (internal dimension/external dimension/height)

Excavator weight: 13-25 t

Catalog number:LE01126

Fits model: CX240BLR, CX160B, CX210B, CX210BLR, CX225SR, CX210BNLC, CX240, CX160, CX240B

Ring material: forged steel Ring hardness: 60-65 HRC

O-ring material: NBR75

Abrasion resistance: high

Rust resistance: medium
