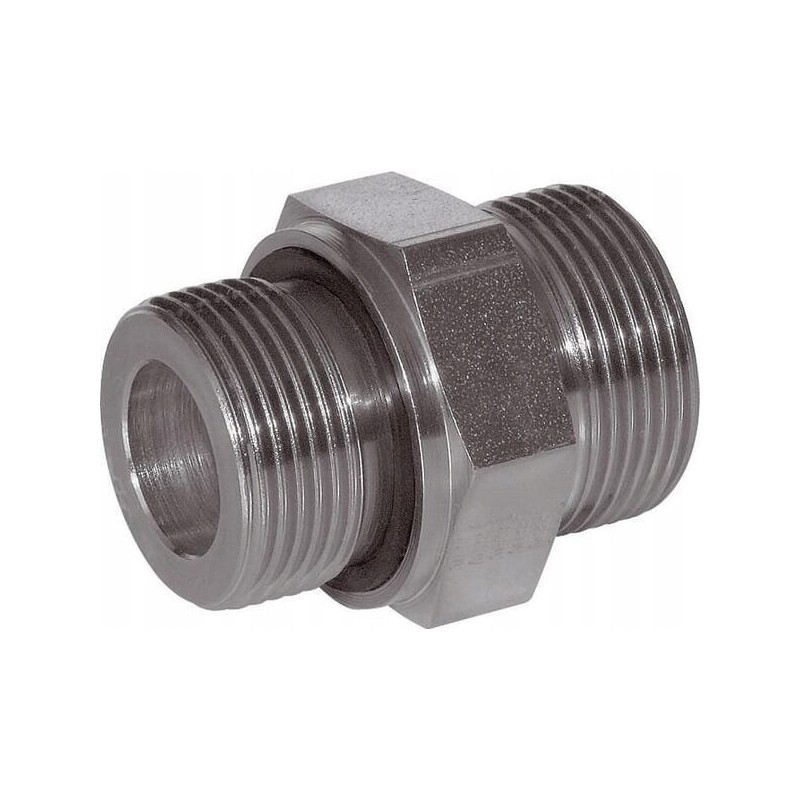

Straight connection with gasket 3 8 bsp m12x1 5

Straight connection with gasket 3/8' BSP - M12x1.5 6L Parameters

Part number: GES6LR38WD

Unit: piece

Manufacturer: Voss

Properties: - High corrosion resistance

Shape: Straight - 2 sides of the connection

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connector No. 1 diameter [G]: 6 mm

Connector No. 1 thread diameter [G]: M12

Connector No. thread length 1 [K]: 12 mm

Inner diameter: 4 mm

Max working pressure: 400 BAR

Thread pitch of connector no. 1 [G]: 1.5 mm

Seal material: Nitrile rubber [NBR]

Series: L

Max tightening torque: 80 N m

Connector 1 [d7] key size: 21.9 mm

Connector 1 [S1] key size: 14 mm

Connector 1 [G] thread type: BSP

Connector No. 2 Type: Sealing Ring

Connector No. 2 Type - Male/Female: Male

Connector No. 2 Thread Diameter [d2]: 3/ 8 inch

Turns per inch of thread for connector no. 2: 19

Thread type for connector no. 2: BSP

Wrench size for connector no. 2 [S2]: 22 mm

Pipe diameter: 6 mm

ISO standard: 228

Length: 30.5 mm

Specifications

- For direct connection to a metric hose nut or pre-assembled fitting

Benefits

- Low risk of leakage

Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Stainless steel version available on request

- Viton seal available on request

Surface treatment

- Zinc

- Nickel-plated

DIN standard

- 2353

- 228

- 3852

- 2401
