Straight connection with gasket 3 8 bsp m26x1 5

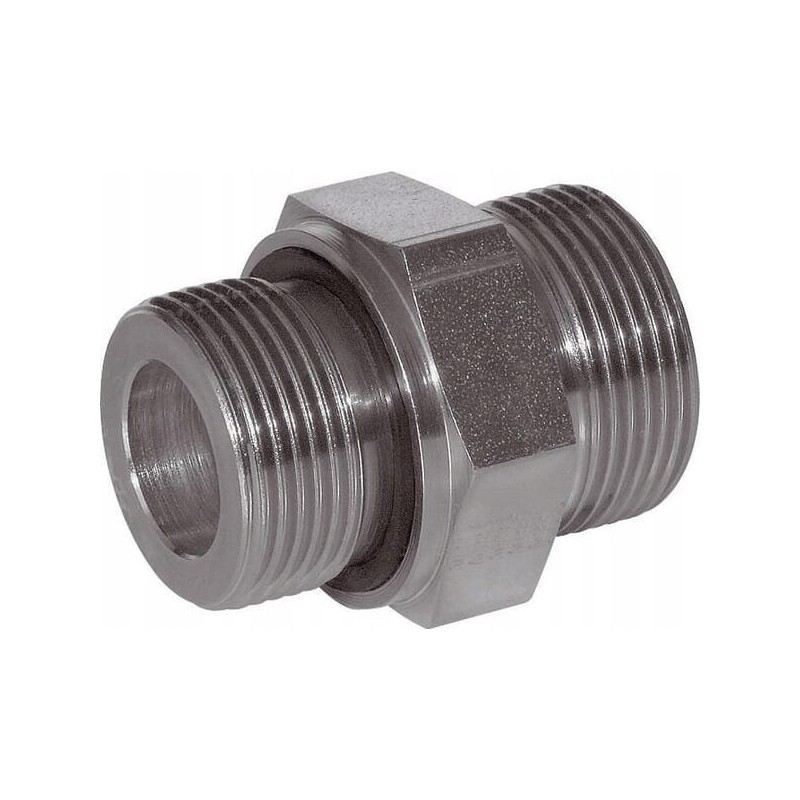

Straight connection with gasket 3/8' BSP - M26x1.5 18L Parameters

Part number: GES18LR38WD

Unit: piece

Manufacturer: Voss

EAN: 8719607075190

Properties: - High corrosion resistance

Shape: Straight - 2 sides of the connection

Connector type no. 1: Cutting ring

Connector no. 1 type - male/female: Male

Connector no. 1 diameter [G]: 18 mm

Connector no. 1 thread diameter [G]: M26< p>

Thread length of connector no. 1 [K]: 12 mm

Inner diameter: 9 mm

Max working pressure: 400 BAR

Thread pitch of connector no. 1 [G]: 1.5 mm

Seal material: Nitrile rubber [NBR]

Series: L

Tightening torque max. : 80 N m

Key size for connector no. 1 [d7]: 21.9 mm

Key size for connector no. 1 [S1]: 32 mm

Connector No. 1 Thread Type [G]: BSP

Connector No. 2 Type: Sealing Ring

Connector No. 2 Male/Female Type: Male

Diameter thread of connector No. 2 [d2]: 3/8 inch

Number of threads per inch of thread of connector No. 2: 19

Type of thread of connector No. 2: BSP

Wrench size for connector no. 2 [S2]: 27 mm

Pipe diameter: 18 mm

ISO standard: 228

Length: 33.5 mm

Specifications

- For direct connection to metric hose nut or pre-assembled fitting

Benefits

- Low risk of leakage

Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Stainless steel version available on request

- Viton seal available on request

Surface treatment

- Zinc

- Nickel-plated

DIN standard

- 2353

- 228

- 3852

- 2401
