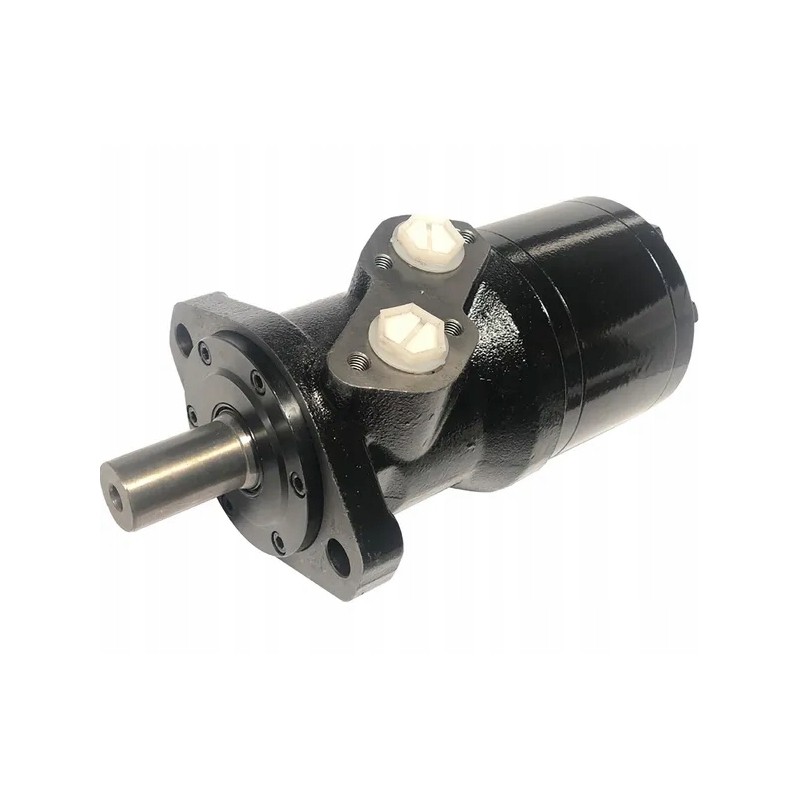

Smr200a225ygp orbital engine 200cc gopart

SMR200A225YGP 200cc gopart orbital engine EAN

8719607280136

Specifications

Heavy axial and radial axle load and high tightening torque

Low wear

Application

Bale wrapper

Can be used wherever high torque and low rotational speeds are required

Also suitable for continuous change direction of rotation

Suitable for continuous use under high pressure

Suitable for use in closed systems

Properties

With leakage oil drain

Roller design

Wide shaft plain bearing

Can be connected in series with multiple motors

Medium orbital motor series

Solid and compact design

Benefits

Good price-quality ratio

Long service life

Collar shape

Oval

Number of mounting holes

2

Shaft type

Cylindrical

Shaft diameter

25 mm

Capacity

200 cm³/rev

Continuous torque max.

369 N m

Continuous working pressure max.

140 BAR

Temporary working pressure max.

175 BAR

Working pressure max.

200 BAR

Max. flow.

60 l/min

Max. rotational speed

295 rpm

Min. rotational speed

10 rpm

Main connection thread diameter

1/2 inch

Main connection thread type

BSP

Drain connection thread diameter

1/4 inch

Drain connection thread type

BSP

Connection position

Side

L1 Rotor length

35 mm

Max. power.

11.5 kW
