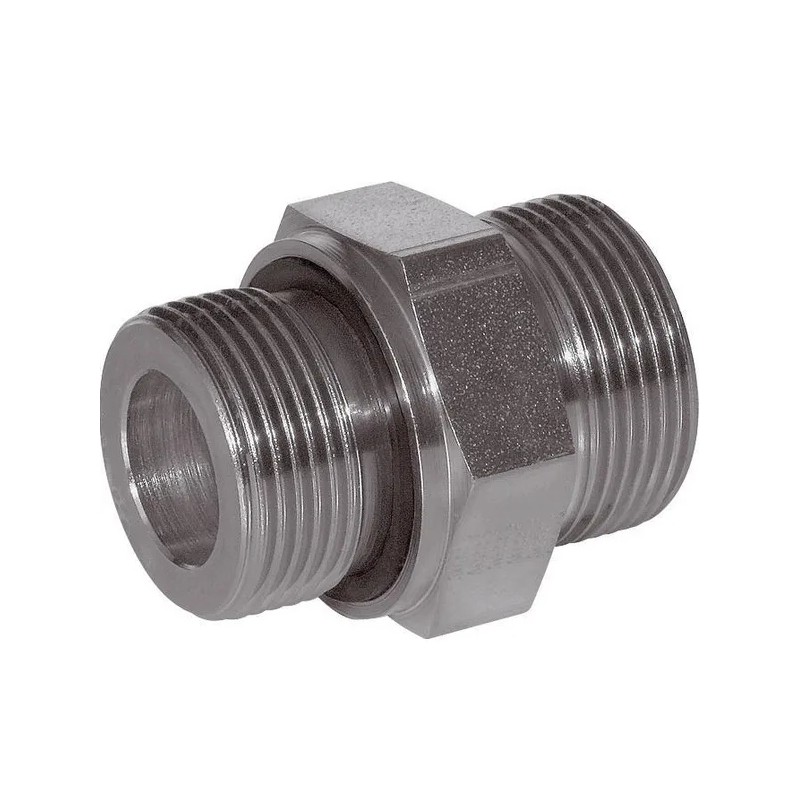

Straight connection with gasket 3 8 bsp m18x1 5 12l

Straight connection with gasket 3/8'' BSP-M18x1.5 12LEAN

8716106786015

Advantages

Limited risk of leakage

Product details

For direct connection to metric hose nut or pre-assembled connector - High corrosion resistance - Hydraulic hoses

Hydraulic pipes - Not for use with 4-braid HDR hoses (4SP)

Benefits

Low risk of leakage

Shape

Straight - 2 sides

Connector type no. 1

Cutting ring

Connector type no. 1 - male/female

Male

G Connection diameter

12 mm

G Thread diameter of connector no. 1

M18

i Length of connector thread

12 mm

G Thread pitch of connector no. 1

1.50 mm

G Connector thread type

BSP

d7 Connector no. 1 key size

21 .9 mm

SW1 Wrench size for joint no. 1

22.0 mm

Connector no. 2 type

Sealing ring

Type of connector no. 2 - male/female

Male

d2 Thread diameter of connector no. 2

3/8 inch

Number of turns per inch of thread for connector No. 2

19

Type of thread for connector No. 2

BSP

S2 Wrench size for connector No. 2

22.0 mm

L2 Dimension from the axis of the joint to the end of the next joint

27 mm

L Dimension from the axis of joint no. 2 to the end next connector

12.5 mm

d1 Pipe diameter

12 mm

DIN standard

2353< p>

228

3852

2401

ISO standard

228

dx Internal diameter .

9 mm

lg Length

31.5 mm

Surface treatment

Zinc

Nickel-plated

Max working pressure

400 BAR

Seal material

Nitrile rubber [NBR]

Series

12L

Tightening torque max.

80 N m
