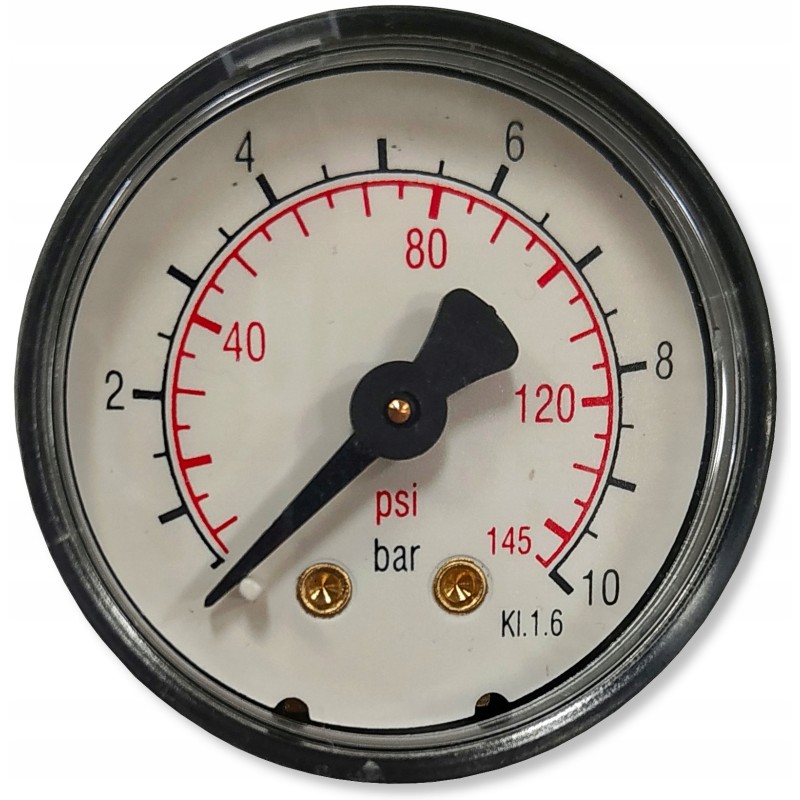

Hydraulic filter contamination indicator 10 bar

PRESSURE MEASUREMENT RANGE: 0 - 10 BARMANOMETER - hydraulic filter contamination indicator, mounted on the return filter in closed systems. Its task is to indicate increased pressure caused by excessive contamination of the filter.

Despite the lack of glycerin in the manometer, the level of measurement accuracy is very good.

Application:

The manometer works perfectly in mobile hydraulic systems with hydraulic filters and hydraulic units.

Technical data: Pressure measurement range: 0-10 Bar

Outer diameter of the clock: 38.5mm

Clock thickness: 24mm

Connection port thread [BSP]: 1/8'

Operating temperature [°C]: -40 to +70

Accuracy class : 1.6

Material: Plastic housing, glass viewfinder

Example of use in hydraulic filters
