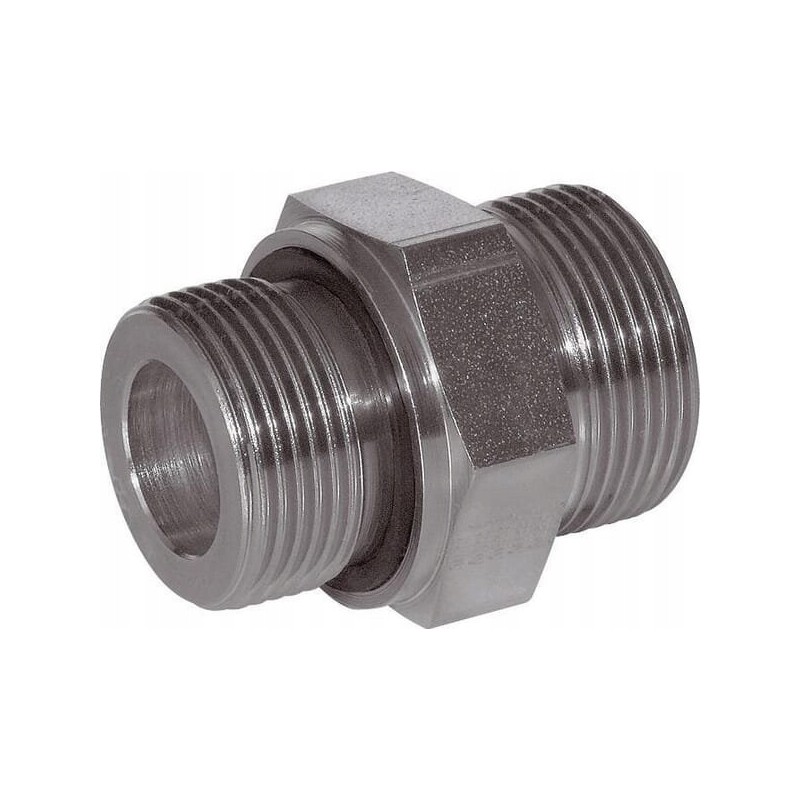

Straight connection with gasket 1 8 bsp m12x1 5

Straight connection with gasket 1/8' BSP - M12x1.5 6L Parameters

Part number: GES6LR18WD

Unit: piece

Manufacturer: Voss

EAN: 8716106786923

Properties: - High corrosion resistance

Shape: Straight - 2 sides of the connection

Connector type no. 1: Cutting ring

Connector no. 1 type - male/female: Male

Connector no. 1 diameter [G]: 6 mm

Connector no. 1 thread diameter [G]: M12< p>

Thread length of connector no. 1 [K]: 8 mm

Inner diameter: 4 mm

Max working pressure: 500 BAR

Thread pitch of connector no. 1 [G]: 1.5 mm

Seal material: Nitrile rubber [NBR]

Series: L

Tightening torque max. : 20 N m

Key size for connector no. 1 [d7]: 13.9 mm

Key size for connector no. 1 [S1]: 14 mm

Connector No. 1 Thread Type [G]: BSP

Connector No. 2 Type: Sealing Ring

Connector No. 2 Male/Female Type: Male

Diameter thread of connector No. 2 [d2]: 1/8 inch

Number of threads per inch of thread of connector No. 2: 28

Type of thread of connector No. 2: BSP

Wrench size for connector no. 2 [S2]: 14 mm

Pipe diameter: 6 mm

ISO standard: 228

Length: 23.5 mm

Specifications

- For direct connection to metric hose nut or pre-assembled fitting

Benefits

- Low risk of leakage

Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Stainless steel version available on request

- Viton gasket available on request

Surface treatment

- Zinc

- Nickel-plated

Dimension from the connector axis to the end next connector [L2]

23 mm

Dimension from the axis of connector No. 2 to the end of the next connector [L]

8.5 mm

DIN standard

- 2353

- 228

- 3852

- 2401
