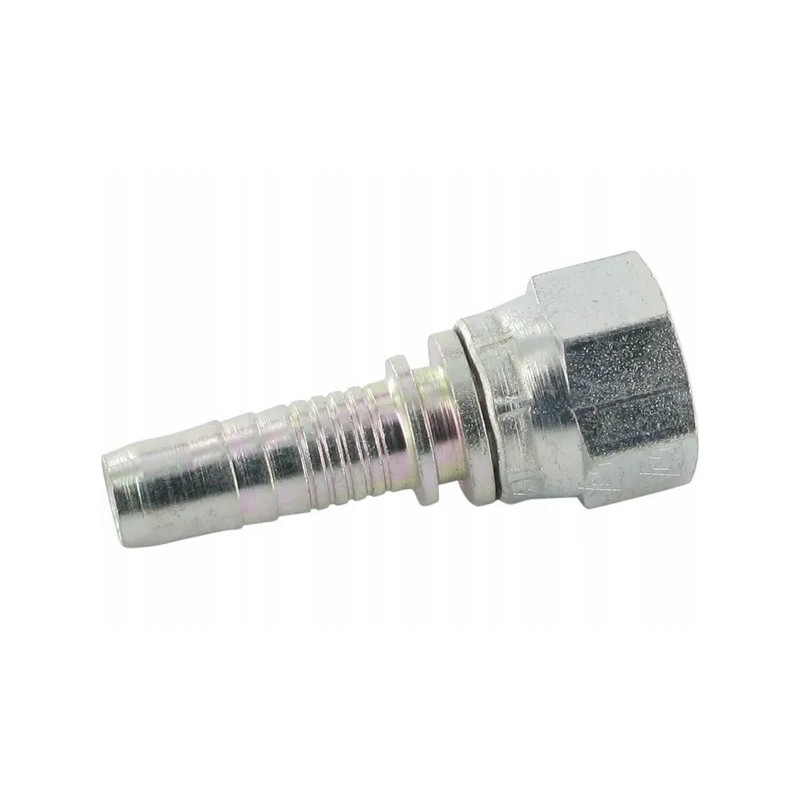

Pa109 tip dn10 9 16 unf

PA109 Tip DN10-9/16 UNFEAN

8716106787913

Cone angle

37 °

Shape

Straight - 2 sides of connection

Connector type no. 1

Thread

Connector type no. 1 - male/female

Female

Type of connector no. 1 - code

DKJ

Length of connector no. 1

15.3 mm

Connector thread diameter< p>

9/16 inch

Connector Thread Type

UNF

Wrench Size for Connector No. 1

19.0 mm

Connector type no. 2

Hose connector

Connector type no. 2 - male/female

Male

Diameter of joint no. 2

3/8 inch

Diameter of joint no. 2

10 mm

Material

Steel

Surface treatment

Galvanized

White passivated

Connection

JIC union nut (UNF thread ) with internal cone 74°

Application

Screw connections on the folded edge of the sheet metal

Type

DKJ
