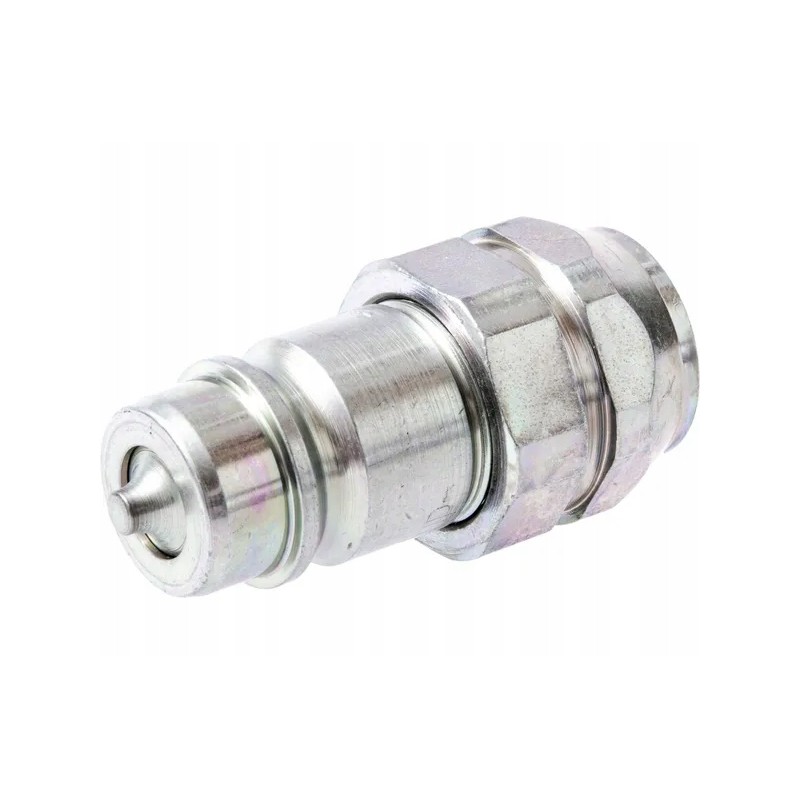

Quick connector plug skp m 1 2 female thread m18x1 5

SKPM12D18 Quick connector plug SKP-M 1/2' internal thread M18x1.5 Universal use

Agricultural machinery

Municipal technology

Mineral oil-based fluids

Properties

Standard agricultural connector

Push to connecta

Shape

Straight - 2 sides of the connection

Size (code)

BG 3

Connector type no. 1

Quick connector

Connector type no. 1 - male/female< p>

Male

Connection diameter

20.5 mm

Connector type no. 2

Thread

Type of connector no. 2 - male/female

Female

Thread diameter of connector no. 2

M18

Thread pitch of connector no. 2

1.50 mm

Connection thread type no. 2

Metric

Possibility to connect under pressure

No< p>

ISO standard

7241-1-A

Outer diameter

38 mm

Total length

62 mm

Surface treatment

White passivated

Working pressure

250 BAR

Operating temperature max.

100 °C

Operating temperature min.

-30 °C

Seal material

Nitrile rubber [NBR]

Teflon (PTFE)

Connection type

plug
