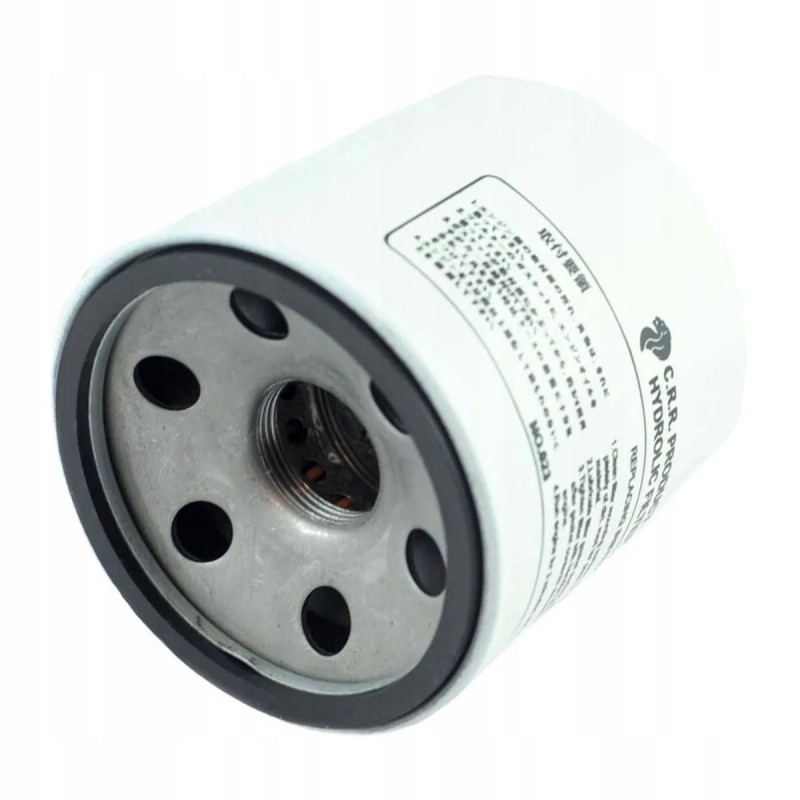

Kubota hydraulic oil filter l

Traktor_com_pl offers: Kubota L 4FARMER hydraulic oil filter

Hydraulic oil filter with 1'1/8-16UNF thread, dimensions 101 x 98 mm, for Japanese Kubota L series tractors and mini tractors and others.

The main purpose of the hydraulic filter is to clean the hydraulic oil, stopping all impurities that enter the hydraulic system or are created during the use of the tractor, e.g. solid (mineral) particles that are formed during the operation of the machine. We replace the hydraulic filter every time we change the hydraulic oil or when the vehicle is frequently used, in the case of mini tractors, approximately every 100 operating hours in the case of used tractors. The rules for replacing the hydraulic filter in new tractors are described in detail in the machine's operating manual and usually after the first 50 operating hours (at least 3 cycles). A hydraulic filter is most often a metal filter with a thread and a gasket, which is mounted near the tractor box, exactly within the hydraulic system oil flow, most often from the bottom of the box or under the floor of our tractor,

Condition: New

Production: Replacement

Parts: Filters

Height (mm): 100

Diameter (mm): 95

Base diameter (mm): 97.50

Seal diameter (mm): 80 / 90

Thread: 1'1/ 8-16UNF

Tractor models: Kubota L3408, Kubota L2808, Yanmar F180, Yanmar AF120

Comparison numbers: 3A431-82623

Dimensions:

diameter: 95 mm,

base diameter: 97.50,

seal diameter: external 90 mm, internal 80 mm,

height: 100 mm,

thread: 1'1/8-16UNF,

magnesium included,

comparison numbers: 3A431-82623.

Tractor models :

Yanmar :

Yanmar F180,

Yanmar AF120.

Kubota :

Kubota GL220,

Kubota L2808,

Kubota L3408.

Replacing the hydraulic filter (regularly) and cleaning the insert in the case of a mesh filter guarantees failure-free operation of the machine and ensures that there are no foreign bodies in the hydraulic system that may damage our tractor or negatively affect the operation of the machine, reducing its operating parameters.
